Ceiling Mounted

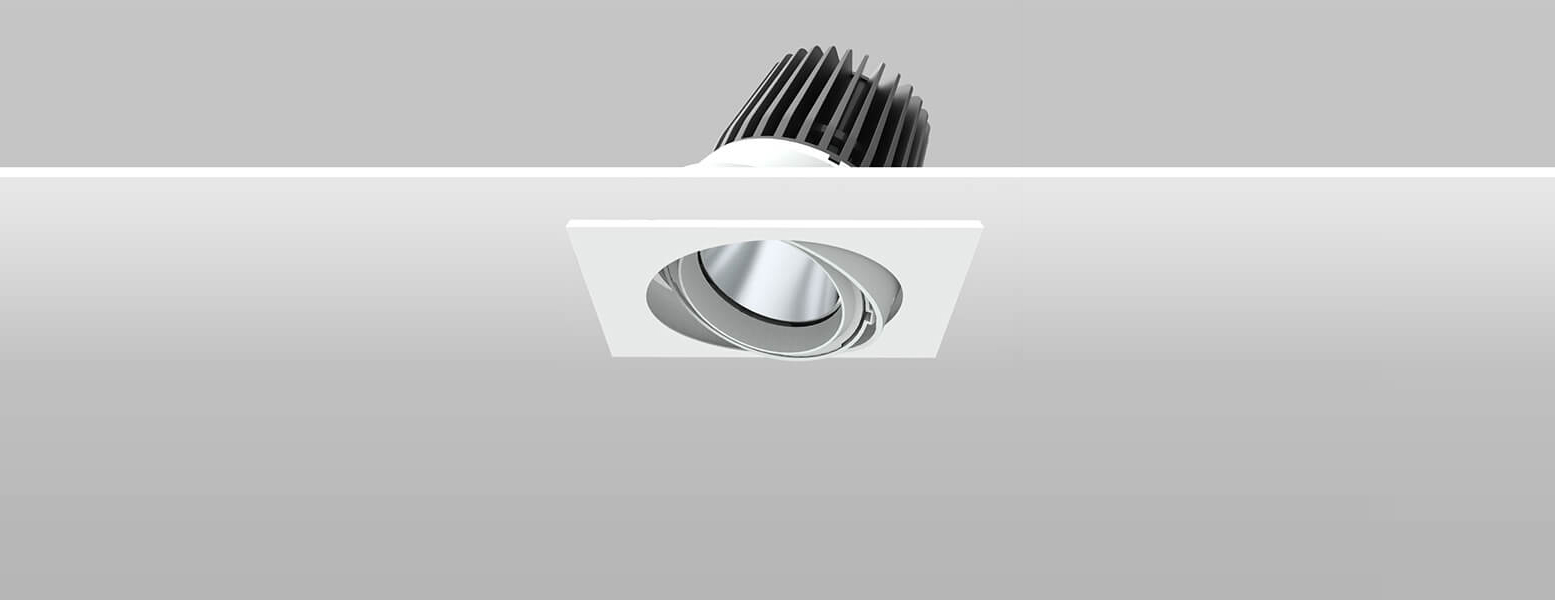

DL102-30W

Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 4000lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
LED Current: 700mA (35-37V)
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: TUV/CE/RoHS
Dimmability: Dimmable Optional
Weight: 1.2KG

Packaging
information

Master carton dimensions(mm): L210*W210*H190mm (Box)
L450xW450xH410mm(Outer carton )
Quantity per carton(PCS): 1pc/box
8pcs/CTN
G.W. Carton (Kg): 1.6kg/box (With non-dimmable driver)
14kg/carton (With non-dimmable driver)
1.65kg/box (With Triac dimmable drive)
14.5kg/carton (With Triac dimmable)

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
40W >80 15° 4330 lm 3000K   DL101-40W-830-W-15-02
4390 lm 4000K   DL101-40W-840-W-15-02
20° 4370 lm 3000K   DL101-40W-830-W-20-02
4500 lm 4000K   DL101-40W-840-W-20-02
45° 4340 lm 3000K   DL101-40W-830-W-45-02
4570 lm 4000K   DL101-40W-840-W-45-02
>90 15° 3930 lm 3000K   DL101-40W-930-W-15-02
3750 lm 4000K   DL101-40W-940-W-15-02
20° 3790 lm 3000K   DL101-40W-930-W-20-02
3830 lm 4000K   DL101-40W-940-W-20-02
45° 3760 lm 3000K   DL101-40W-930-W-45-02
3890 lm 4000K   DL101-40W-940-W-45-02

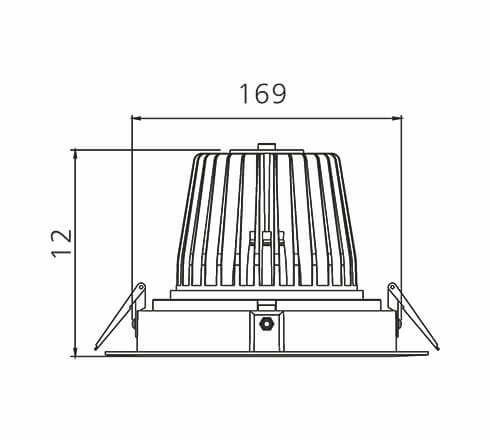

Size

Need more informations? Contact us
