SD091-30W
Pro
Ceiling Surface Mounted
SD041-20W
Using the same lamp body and optical system from the iTrack Pro series, it provides high efficient performance and maximized visual comfort. Featuring with a cylinder and round shape, it can be extended to track mounted and pendant options.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 500mA,35-37V |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | NON-Dimmable |
| Weight: | 1.150KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 10° | 2040 lm | 3000K | SD041-20W-830-W-10 | |
| SD041-20W-830-B-10 | ||||||
| 2050 lm | 4000K | SD041-20W-840-W-10 | ||||
| SD041-20W-840-B-10 | ||||||
| 20° | 2060 lm | 3000K | SD041-20W-830-W-20 | |||
| SD041-20W-830-B-20 | ||||||
| 2060 lm | 4000K | SD041-20W-840-W-20 | ||||
| SD041-20W-840-B-20 | ||||||
| 38° | 2050 lm | 3000K | SD041-20W-830-W-38 | |||
| SD041-20W-830-B-38 | ||||||
| 2040 lm | 4000K | SD041-20W-840-W-38 | ||||
| SD041-20W-840-B-38 | ||||||
| >90 | 10° | 1730 lm | 3000K | SD041-20W-930-W-10 | ||
| SD041-20W-930-B-10 | ||||||
| 1870 lm | 4000K | SD041-20W-940-W-10 | ||||
| SD041-20W-940-B-10 | ||||||
| 20° | 1750 lm | 3000K | SD041-20W-930-W-20 | |||
| SD041-20W-930-B-20 | ||||||
| 1900 lm | 4000K | SD041-20W-940-W-20 | ||||
| SD041-20W-940-B-20 | ||||||
| 38° | 1750 lm | 3000K | SD041-20W-930-W-38 | |||
| SD041-20W-930-B-38 | ||||||
| 1890 lm | 4000K | SD041-20W-940-W-38 | ||||
| SD041-20W-940-B-38 |
Downloads

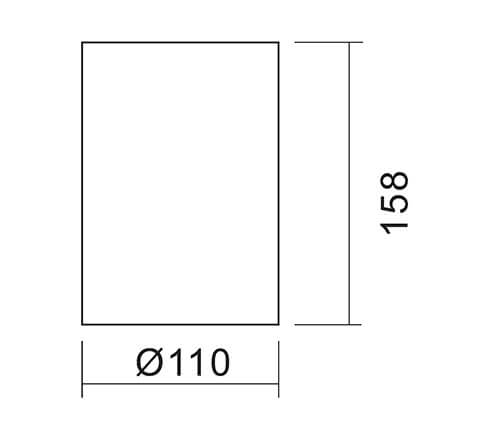

Size
Need more informations? Contact us
