Linear Lighting System

SD3-L328A/L646A/L964A

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
Current: 350mA
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: CE/RoHS
Dimmability: Dimmable Optional
Weight: 0.8KG(L328A)
1.4KG(L646A)
2.0KG(L964A)

Packaging
information

System
overview

 length  Power CRI Beam Angle Luminous CCT Housing Part Number
328mm 15W >80 15°/24°/36°/15x35° 1200 lm 2700K   SD3-L328A-15W-827-W-**
  SD3-L328A-15W-827-B-**
1300lm 3000K   SD3-L328A-15W-830-W-**
  SD3-L328A-15W-830-B-**
1400 lm 4000K   SD3-L328A-15W-840-W-**
  SD3-L328A-15W-840-B-**
646mm 30W >80 15°/24°/36°/15x35° 2300 lm 2700K   SD3-L646A-30W-827-W-**
  SD3-L646A-30W-827-B-**
2400 lm 3000K   SD3-L646A-30W-830-W-**
  SD3-L646A-30W-830-B-**
2450 lm 4000K   SD3-L646A-30W-840-W-**
  SD3-L646A-30W-840-B-**
964mm 40W >80 15°/24°/36°/15x35° 3100lm 2700K   SD3-L964A-40W-840-W-**
  SD3-L964A-40W-840-B-**
3150 lm 4000K   SD3-L964A-40W-840-W-**
  SD3-L964A-40W-840-B-**
3200 lm 3000K   SD3-L964A-40W-840-W-**
  SD3-L964A-40W-840-B-**

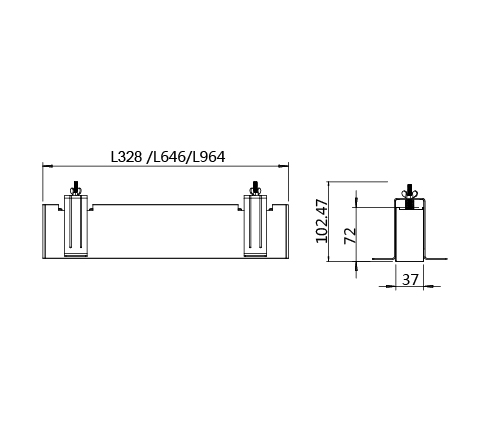

Size
