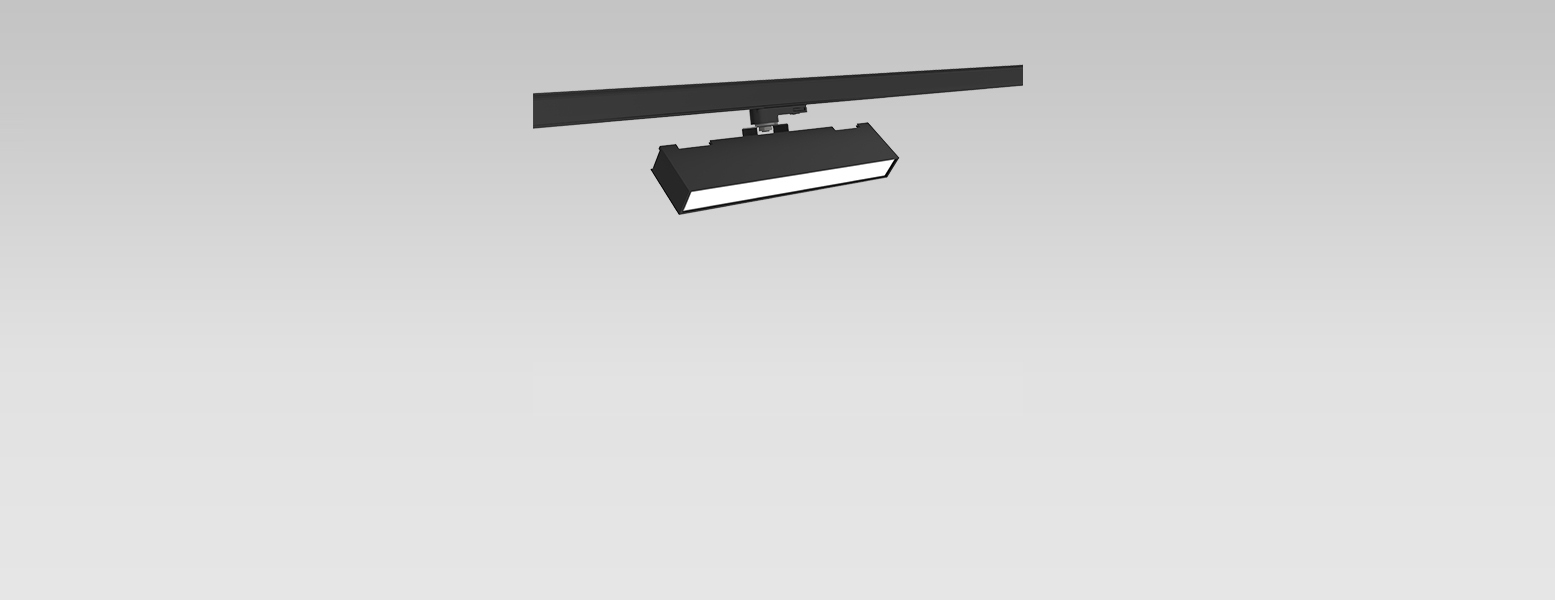

Linear Lighting System

TL1-L328B/L646B/L964B

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
Current: 350mA;700mA;1000mA
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: CE/RoHS
Dimmability: Dimmable Optional
Weight: 0.8KG(L328B)
1.4KG(L646B)
2.0KG(L964B)

Packaging
information

System
overview

 length  Power CRI Beam Angle Luminous CCT Housing Part Number
328mm 15W >80 90° 1100 lm 2700K   TL1-L328B-15W-827-W-90
  TL1-L328B-15W-827-B-90
1150lm 3000K   TL1-L328B-15W-830-W-90
  TL1-L328B-15W-830-B-90
1200 lm 4000K   TL1-L328B-15W-840-W-90
  TL1-L328B-15W-840-B-90
646mm 30W >80 90° 2200 lm 2700K   TL1-L646B-30W-827-W-90
  TL1-L646B-30W-827-B-90
2235 lm 3000K   TL1-L646B-30W-830-W-90
  TL1-L646B-30W-830-B-90
2230 lm 4000K   TL1-L646B-30W-840-W-90
  TL1-L646B-30W-840-B-90
964mm 40W >80 90° 3050lm 2700K   TL1-L964B-40W-840-W-90
  TL1-L964B-40W-840-B-90
3100 lm 4000K   TL1-L964B-40W-840-W-90
  TL1-L964B-40W-840-B-90
3150 lm 3000K   TL1-L964B-40W-840-W-90
  TL1-L964B-40W-840-B-90

Downloads

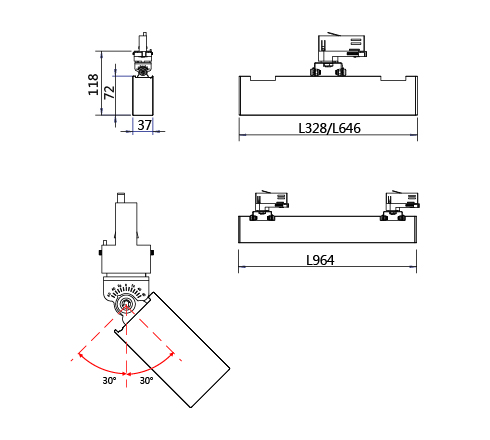

Size
