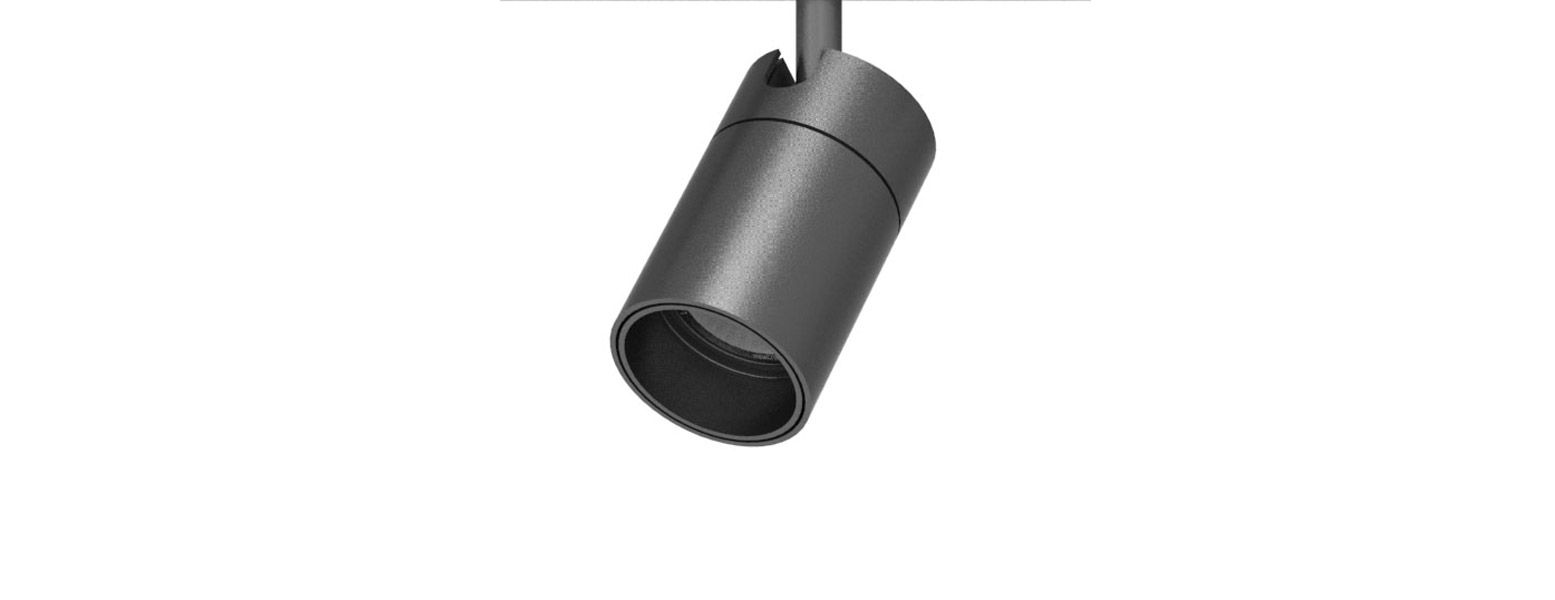

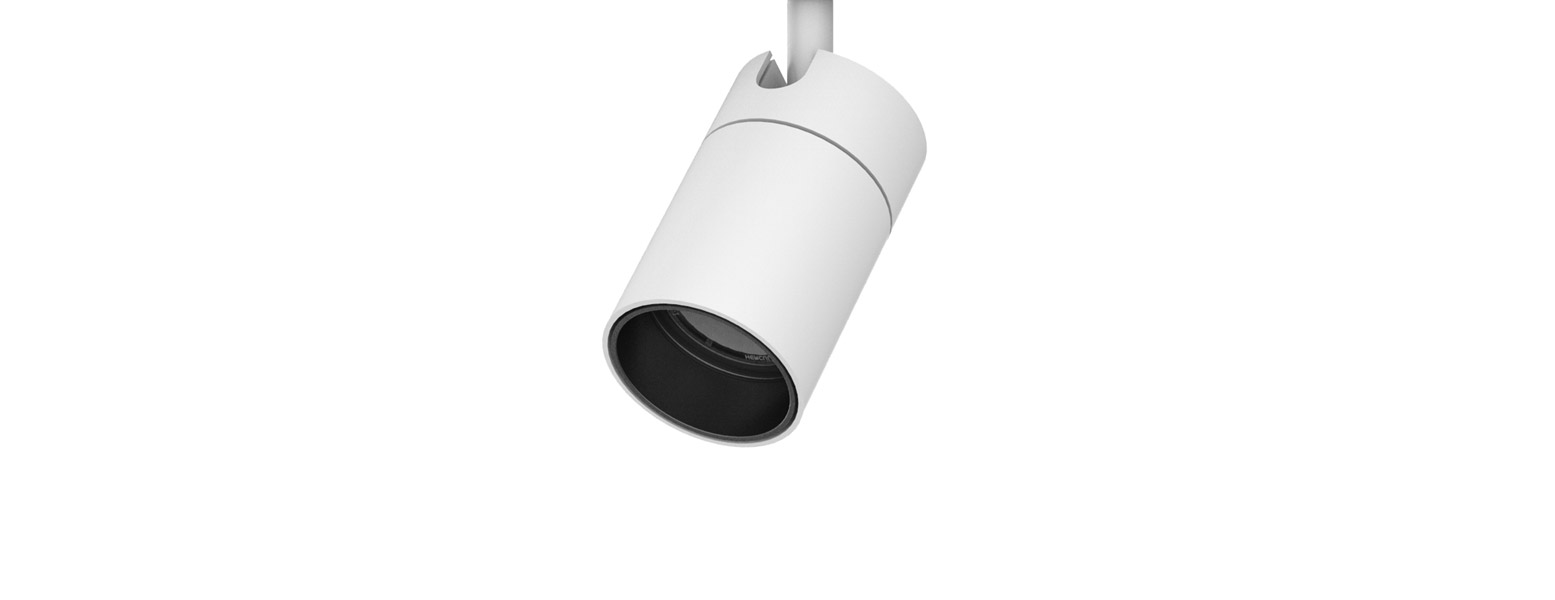

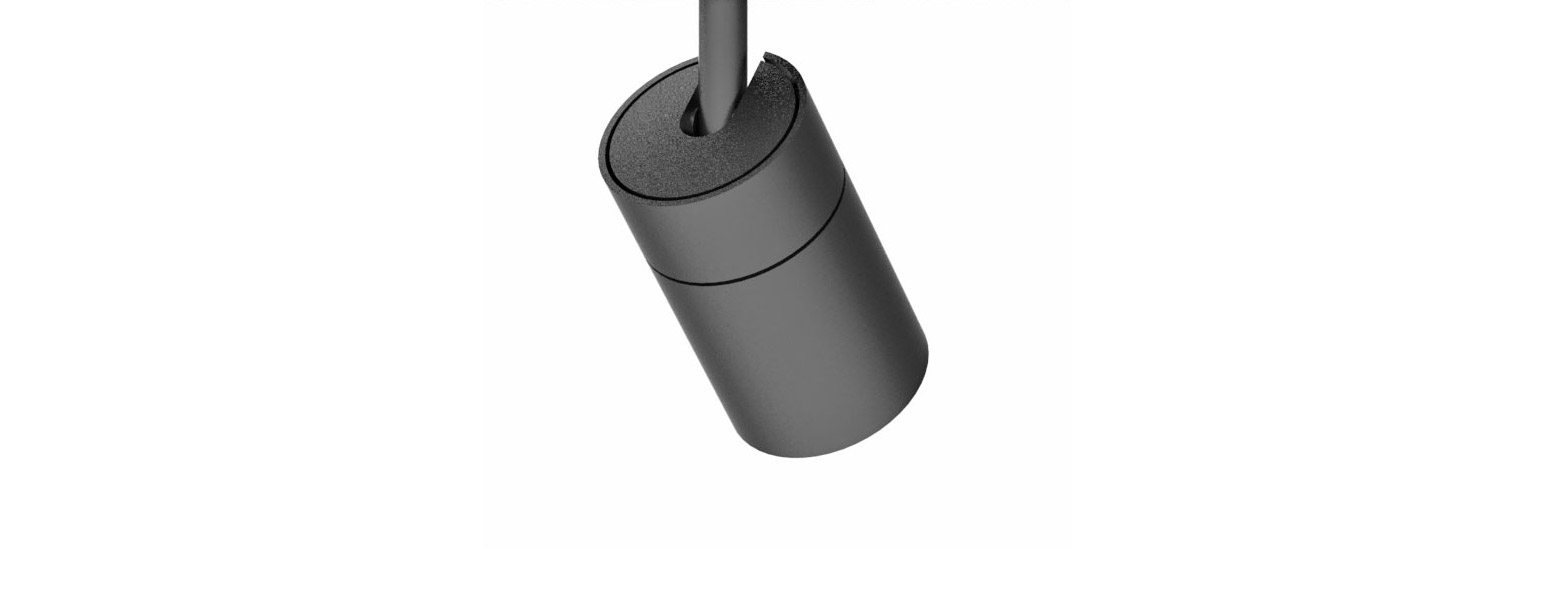

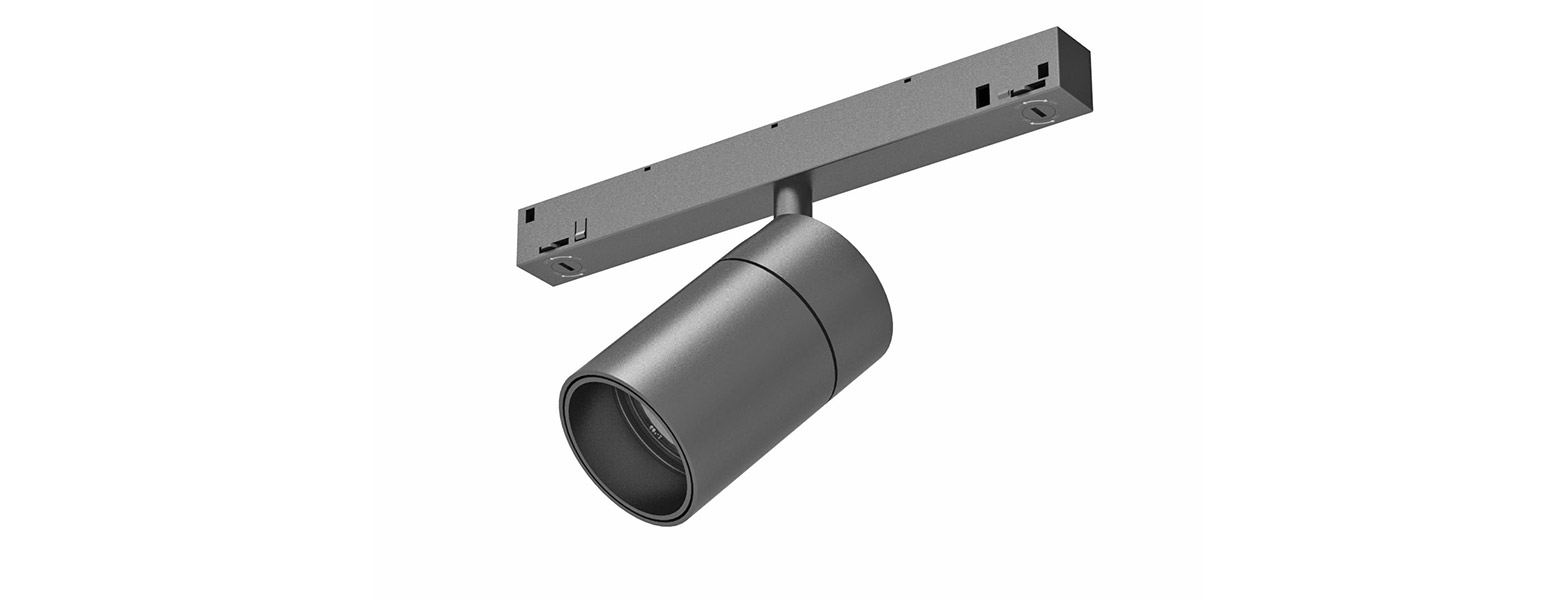

ALT45-L11

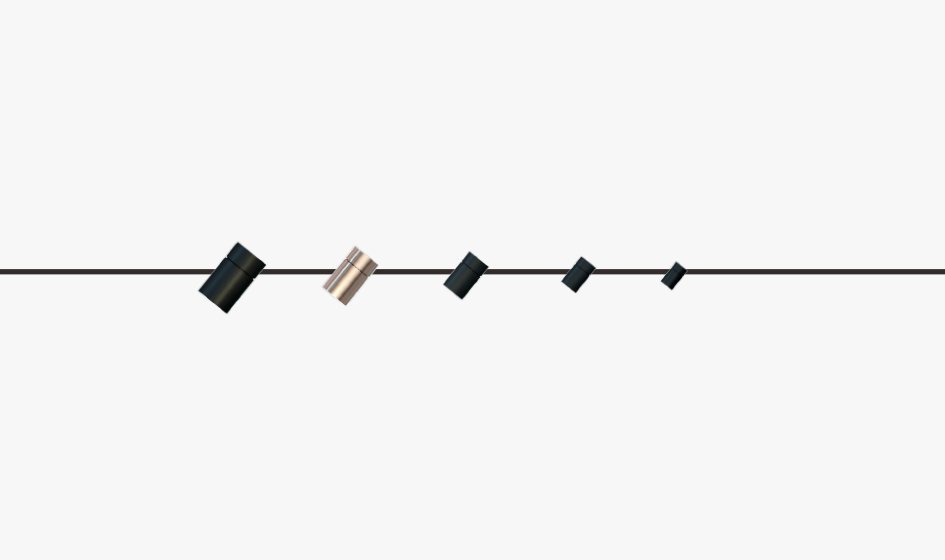

Long or short, big or small, white finish or colored, spot or wall washer, zoomer or projector, highly efficient or low glare, mains voltage or 48V magnet, you can always find a suitable solution from the ALTRACK system for your growing lighting tasks in different spaces like shop displays, private homes, restaurants, hotels and art exhibitions. The flexibility and multi-function system makes it truly a versatile lighting tool for architects and designers.
Product
information
| Product number | ALT45 - L11 |
| Track System | 2 wire, 4 wire |
| Input Voltage (v) | 48VDC |
| Dimming | On/Off，1-10V，DALI |
| Light source | COB LED |
| luminaire Lifetime | 50.000h（L80-B10, Ta25°C） |
| Rotation Angle (degree) | 350 |
| Tilting Angle (degree) | 90 |
| IP Rating | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Storage Temperature (°C) | -20 ~ +50 |
| Material | Aluminium |
| Fitting Colors | 9016 Sandy White / 9017 Sandy Black |
Packaging
information
| N.W. lamp (Kg) | 0.2 |
| G.W. Carton (Kg) | 12 |
| Master carton dimensions(mm) | 450x360x300 |
| Quantity per carton | 30 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
14 |
11W | 90 | 809.4 lm | 4000K | ALT45S-4LNC11G40-S |
| 763.6 lm | 3000K | ALT45S-4LNC11G30-S | |||
| 710.1 lm | 2700K | ALT45S-4LNC11G27-S | |||
20 |
11W | 90 | 800.5 lm | 4000K | ALT45S-4LNC11G40-M |
| 755.2 lm | 3000K | ALT45S-4LNC11G30-M | |||
| 702.3 lm | 2700K | ALT45S-4LNC11G27-M | |||
32 |
11W | 90 | 807.5 lm | 4000K | ALT45S-4LNC11G40-F |
| 761.8 lm | 3000K | ALT45S-4LNC11G30-F | |||
| 708.4 lm | 2700K | ALT45S-4LNC11G27-F | |||
56 |
11W | 90 | 682.0 lm | 4000K | ALT45S-4LNC11G40-WF |
| 643.4 lm | 3000K | ALT45S-4LNC11G30-WF | |||
| 598.3 lm | 2700K | ALT45S-4LNC11G27-WF |
Downloads

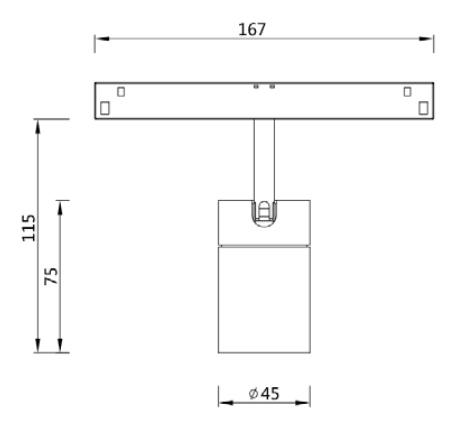

Size
