ALT55-L15
ALTRACK Lighting System
Products
ALT55-L15
Product
information
| Product number | ALT55 - L15 |
| Track System: | 4 wire |
| Input Voltage (v): | 48VDC |
| Dimming | On/Off，1-10V，DALI |
| Light source | COB LED |
| luminaire Lifetime | 50.000h（L80-B10, Ta25°C） |
| Rotation Angle (degree) | 350 |
| Tilting Angle (degree) | 90 |
| IP Rating | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Storage Temperature (°C) | -20 ~+50 |
| Material | Aluminium |
| Fitting Colors | 9016 Sandy White / 9017 Sandy Black |
Packaging
information
| N.W. lamp (Kg) | 0.35 |
| G.W. Carton (Kg) | 13 |
| Master carton dimensions(mm) | 515x415x305 |
| Quantity per carton(PCS) | 24 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
15 |
15W | 90 | 1178.3 lm | 4000K | ALT55S-4LNC15G40-S |
| 1111.6 lm | 3000K | ALT55S-4LNC15G30-S | |||
| 1033.8 lm | 2700K | ALT55S-4LNC15G27-S | |||
20 |
15W | 90 | 1120.8 lm | 4000K | ALT55S-4LNC15G40-M |
| 1057.4 lm | 3000K | ALT55S-4LNC15G30-M | |||
| 983.3 lm | 2700K | ALT55S-4LNC15G27-M | |||
28 |
15W | 90 | 1113.3 lm | 4000K | ALT55S-4LNC15G40-F |
| 1050.3 lm | 3000K | ALT55S-4LNC15G30-F | |||
| 976.8 lm | 2700K | ALT55S-4LNC15G27-F | |||
50 |
15W | 90 | 985.8 lm | 4000K | ALT55S-4LNC15G40-WF |
| 930.0 lm | 3000K | ALT55S-4LNC15G30-WF | |||
| 864.9 lm | 2700K | ALT55S-4LNC15G27-WF |
Downloads

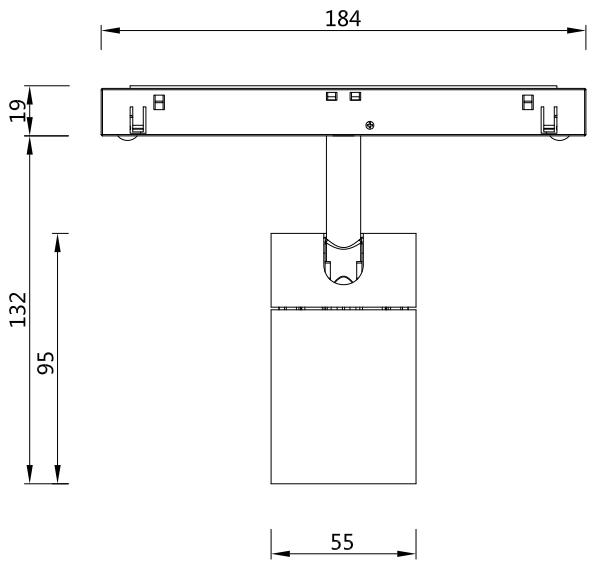

Size
Need more informations? Contact us
