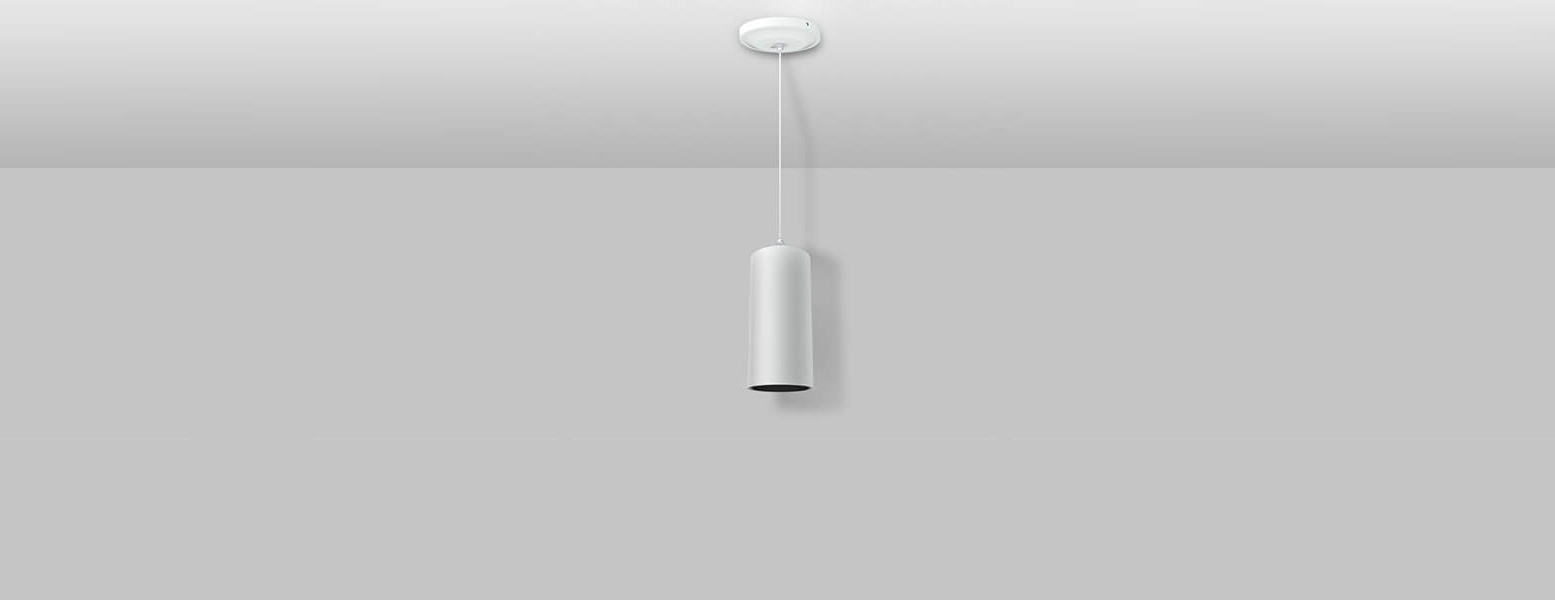

SD052-20W
Using the same lamp body and optical system from the Surface mounted series, it provides high efficient performance and maximized visual comfort. Featuring with a cube and round shape, it can be extended to track mounted and surface mounted options.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 500mA, 35-37V |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | NON-Dimmable |
| Weight: | 0.65KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 12° | 1940 lm | 3000K | SD052-20W-830-W-12 | |
| SD052-20W-830-B-12 | ||||||
| 1970 lm | 4000K | SD052-20W-840-W-12 | ||||
| SD052-20W-840-B-12 | ||||||
| 20° | 1830 lm | 3000K | SD052-20W-830-W-20 | |||
| SD052-20W-830-B-20 | ||||||
| 1850 lm | 4000K | SD052-20W-840-W-20 | ||||
| SD052-20W-840-B-20 | ||||||
| 38° | 1860 lm | 3000K | SD052-20W-830-W-38 | |||
| SD052-20W-830-B-38 | ||||||
| 1880 lm | 4000K | SD052-20W-840-W-38 | ||||
| SD052-20W-840-B-38 | ||||||
| >90 | 12° | 1640 lm | 3000K | SD052-20W-930-W-12 | ||
| SD052-20W-930-B-12 | ||||||
| 1770 lm | 4000K | SD052-20W-940-W-12 | ||||
| SD052-20W-940-B-12 | ||||||
| 20° | 1550 lm | 3000K | SD052-20W-930-W-20 | |||
| SD052-20W-930-B-20 | ||||||
| 1660 lm | 4000K | SD052-20W-940-W-20 | ||||
| SD052-20W-940-B-20 | ||||||
| 38° | 1600 lm | 3000K | SD052-20W-930-W-38 | |||
| SD052-20W-930-B-38 | ||||||
| 1690 lm | 4000K | SD052-20W-940-W-38 | ||||
| SD052-20W-940-B-38 |
Downloads

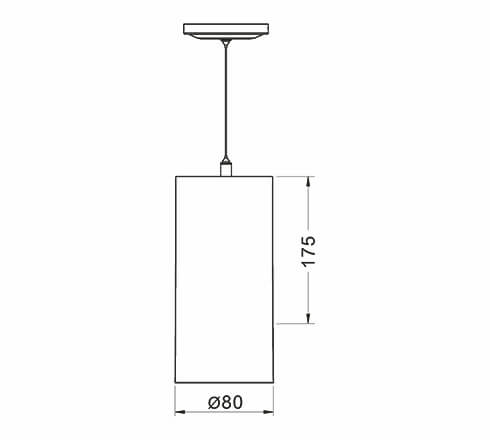

Size
