SD072-5W
Using the same lamp body and optical system from the Surface mounted series, it provides high efficient performance and maximized visual comfort. Featuring with a cube and round shape, it can be extended to track mounted and surface mounted options.
Product
information
| Light source: | SMD |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 350mA, 11-13V |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | NON-Dimmable |
| Weight: | 0.25KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
|---|---|---|---|---|---|---|
| 5W | >80 | 5° | 350 lm | 3000K | SD072-5W-830-W-5 | |
| SD072-5W-830-B-5 | ||||||
| 360 lm | 4000K | SD072-5W-840-W-5 | ||||
| SD072-5W-840-B-5 | ||||||
| >90 | 5° | 310 lm | 3000K | SD072-5W-830-W-5 | ||
| SD072-5W-830-B-5 | ||||||
| 320lm | 4000K | SD072-5W-840-W-5 | ||||
| SD072-5W-840-B-5 |
Downloads

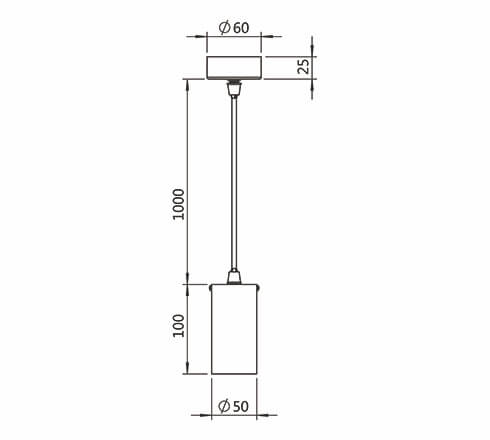

Size
Need more informations? Contact us
