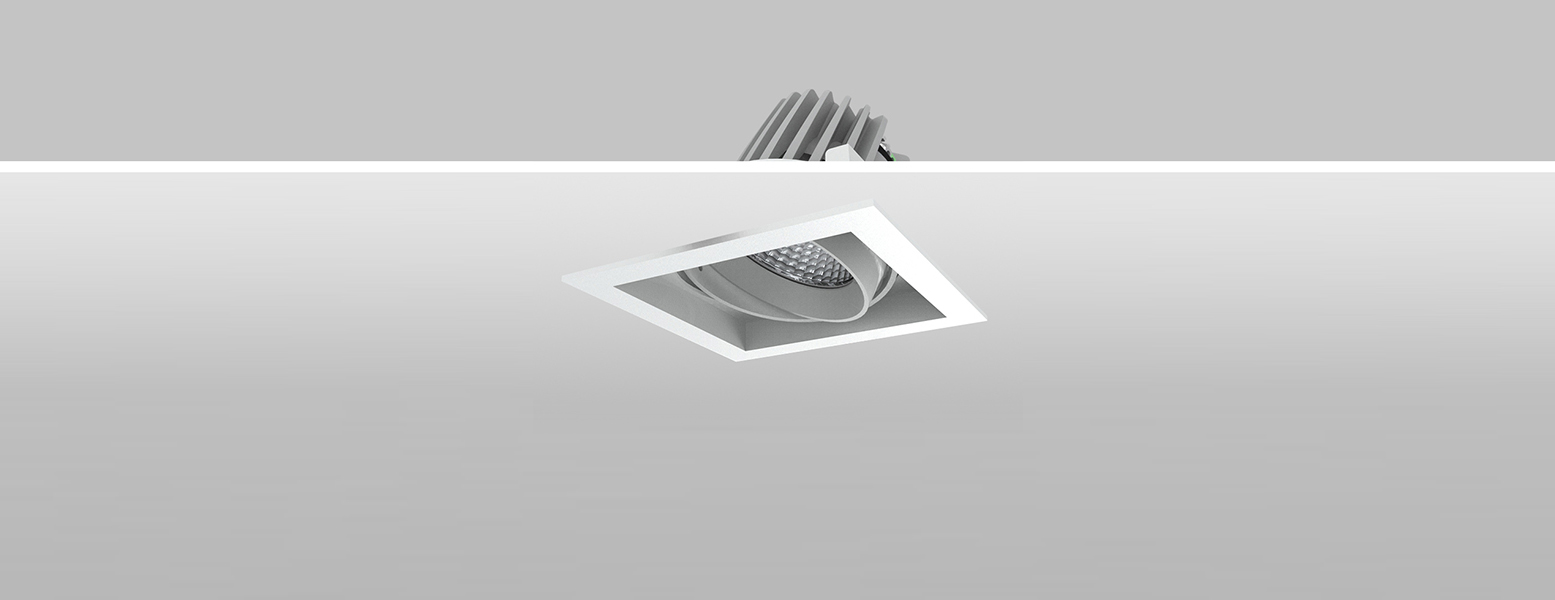

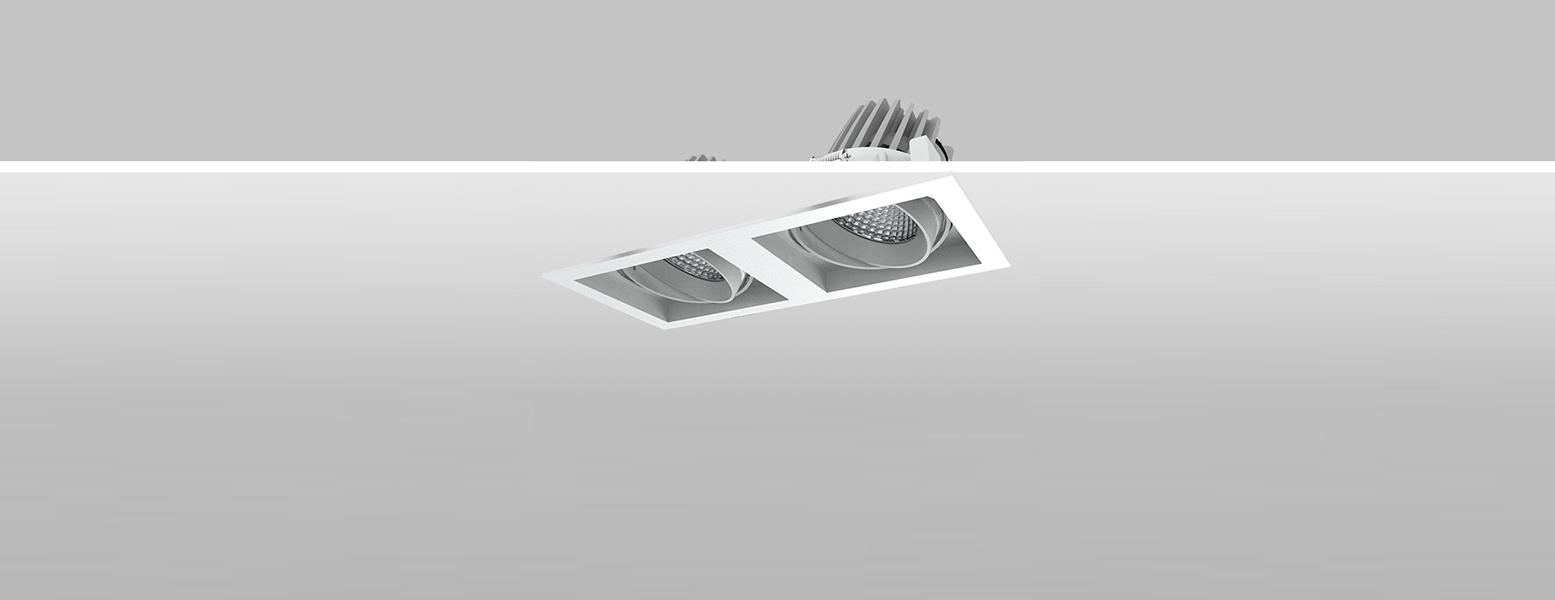

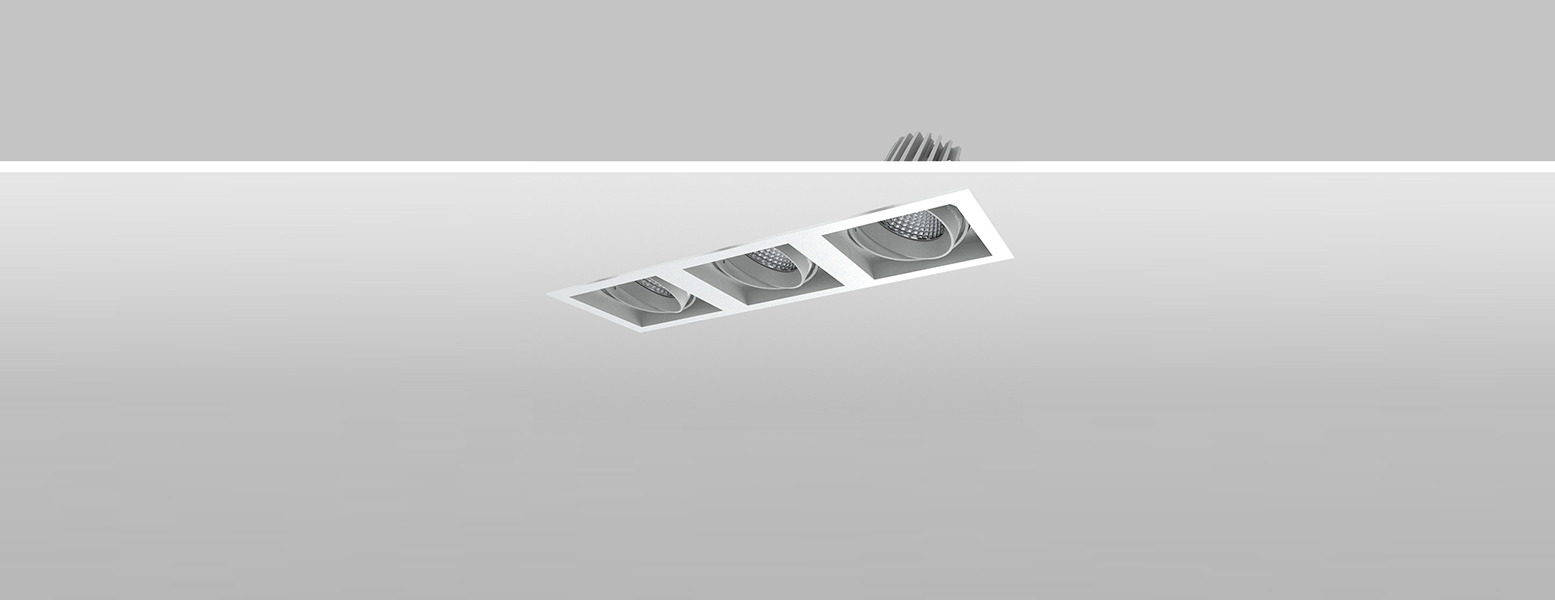

GL02-20W

This family is featured with interchangeable light engine system. 2 light engines of different size can be changed in between more than 20 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The IMS family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere - LED Modules and Light Engines.

Product
information

Name Parameters
Light source: COB
Input Voltage: AC220~240V  50/60Hz
Current: (Adjustable) 500mA 500mA 500mA
  1x20W 2x20w 3x20w
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate:
Dimmability: Dimmable Optional

Packaging
information

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
1x20W 80 15° 2217 lm 3000K   IMS-GL0211-20W-830-S-15
2339lm 4000K   IMS-GL0211-20W-840-S-15
24° 2174 lm 3000K   IMS-GL0211-20W-830-S-24
2309 lm 4000K   IMS-GL0211-20W-840-S-24
40° 2217 lm 3000K   IMS-GL0211-20W-830-S-40
2302 lm 4000K   IMS-GL0211-20W-840-S-40
>90 15° 1993 lm 3000K   IMS-GL0211-20W-930-S-15
24° 1963 lm 3000K   IMS-GL0211-20W-930-S-24
40° 1977 lm 3000K   IMS-GL0211-20W-930-S-40
2x20W >80 15° 3545 lm 3000K   IMS-GL0221-20W-830-S-15
3740lm 4000K   IMSGL0221-20W-840-S-15
24° 3478 lm 3000K   IMS-GL0221-20W-830-S-24
3695 lm 4000K   IMS-GL0221-20W-840-S-24
40° 3547 lm 3000K   IMS-GL0221-20W-830-S-40
3680lm 4000K   IMS-GL0221-20W-840-S-40
>90 15°  3190 lm 3000K   IMS-GL0221-20W-930-S-15
24° 3140 lm 3000K   IMS-GL0221-20W-930-S-24
40° 3165 lm 3000K   IMS-GL0221-20W-930-S-40

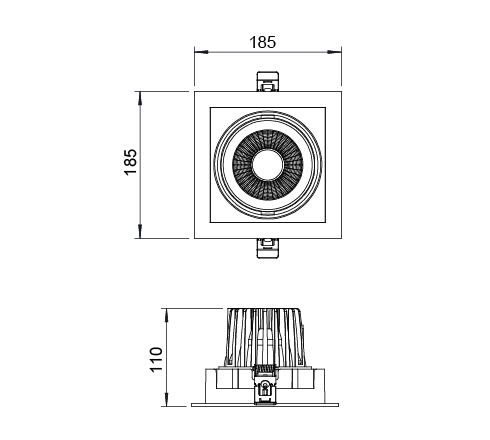

Size
