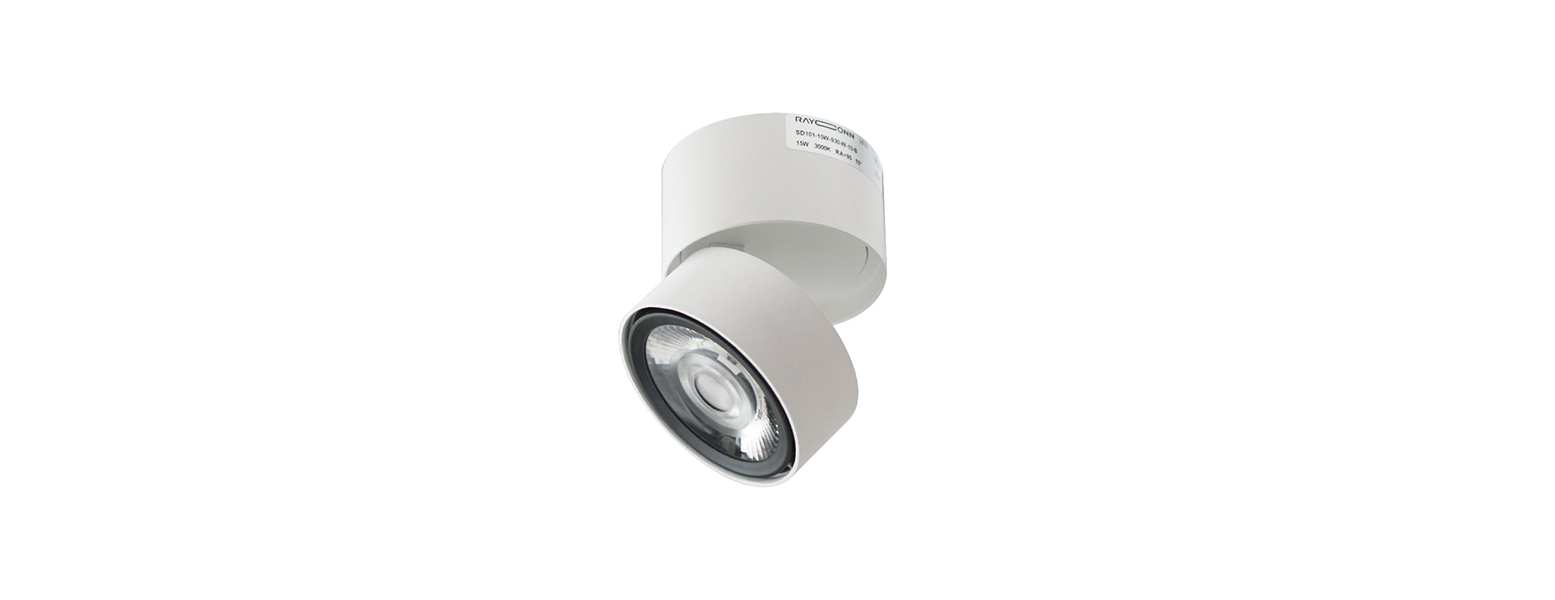

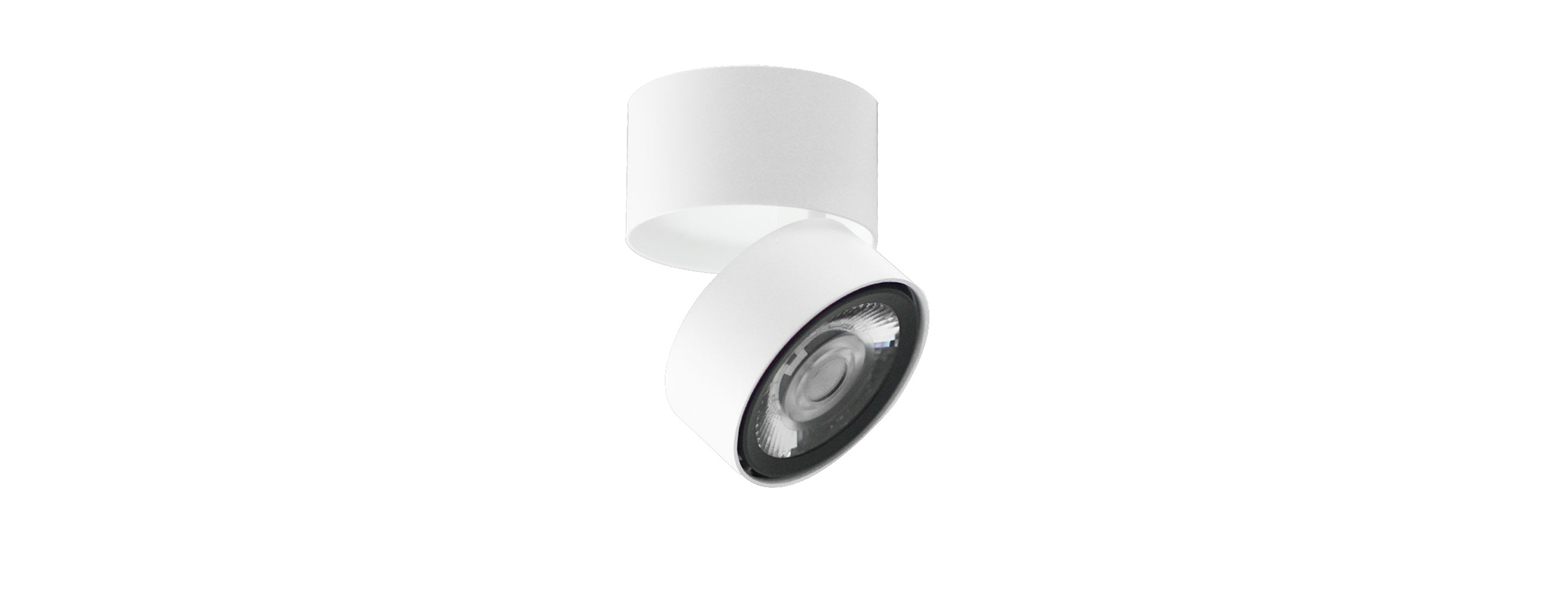

SD10-S-15W

Product
information

Light source: COB
Input Voltage: AC220~240V  50/60Hz
LED Current: 350mA, 35-37V
Beam Angle: 12°/24°/36°/60°
Life Time: > 50,000h - L80 - B10 (Ta 25°C)
Operating temperature: -20℃~40℃
Certificate: CE/RoHS
Weight: 0.45kg

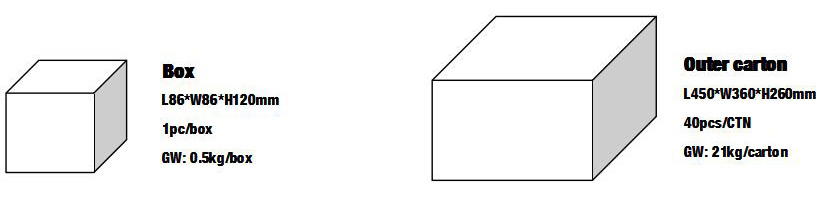

Packaging
information

System
overview

 White  Black
Power CRI Beam Angle Luminous CCT Housing Part Number
15W >80 12° 1500 lm 3000K   SD101-15W-830-W-12-S
  SD101-15W-830-B-12-S
1600 lm 4000K   SD101-15W-840-W-12-S
  SD101-15W-840-B-12-S
24° 1480 lm 3000K   SD101-15W-830-W-24-S
  SD101-15W-830-B-24-S
1580 lm 4000K   SD101-15W-840-W-24-S
  SD101-15W-840-B-24-S
36° 1520 lm 3000K   SD101-15W-830-W-36-S
  SD101-15W-830-B-36-S
1650 lm 4000K   SD101-15W-840-W-36-S
  SD101-15W-840-B-36-S
>90 12° 1270 lm 3000K   SD101-15W-930-W-12-S
  SD101-15W-930-B-12-S
24° 1370 lm 3000K   SD101-15W-930-W-24-S
  SD101-15W-930-B-24-S
36° 1260 lm 3000K   SD101-15W-930-W-36-S
  SD101-15W-930-B-36-S

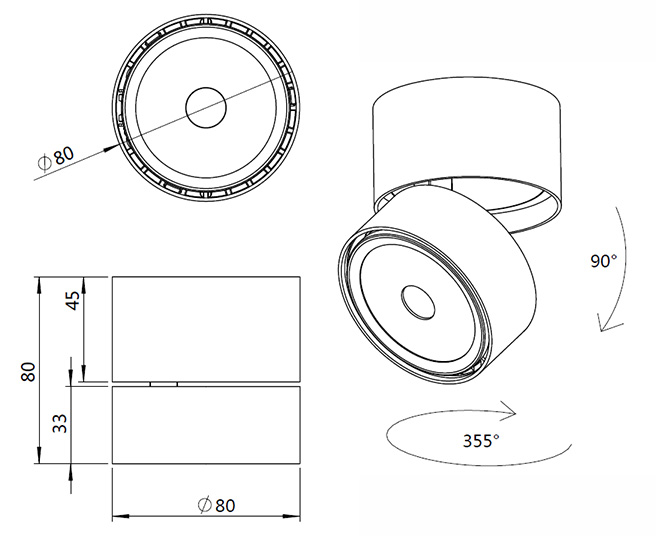

Size

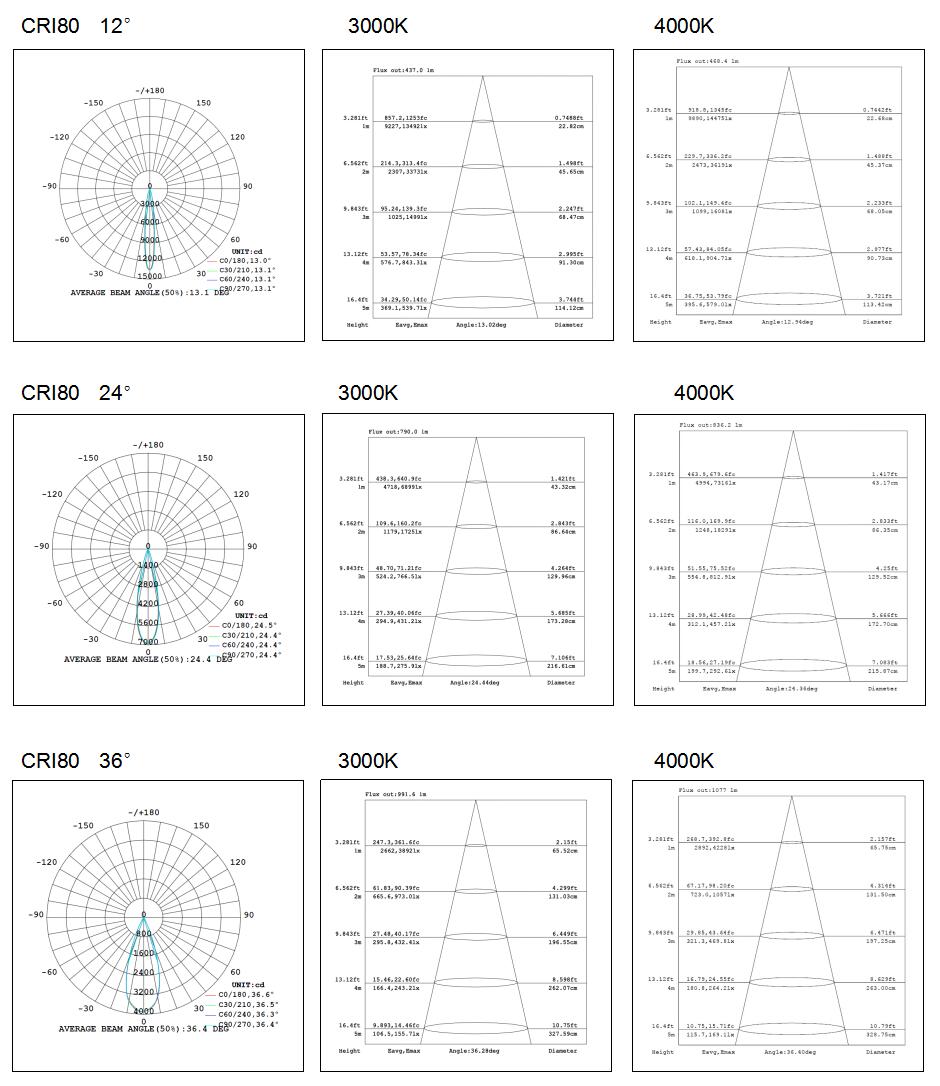

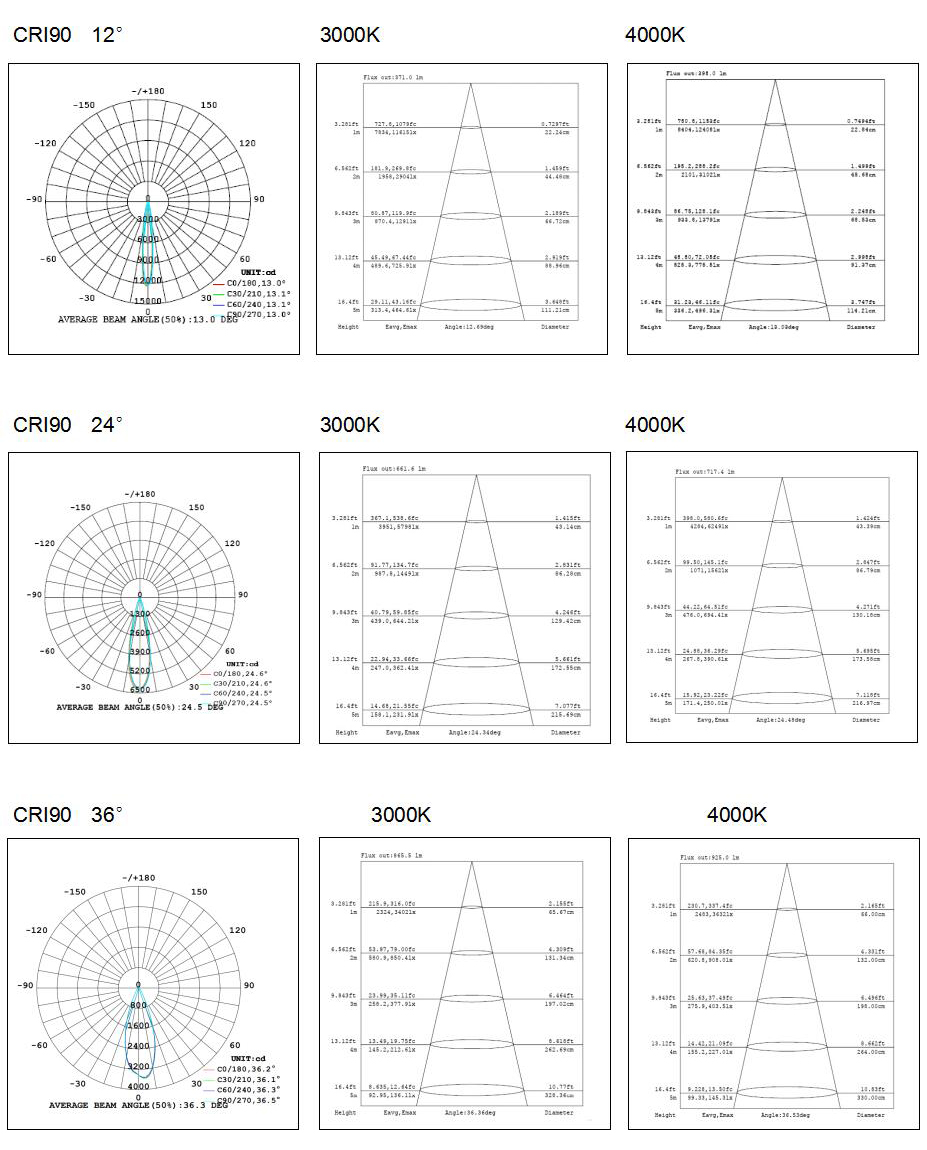

Technical Data
test pattern

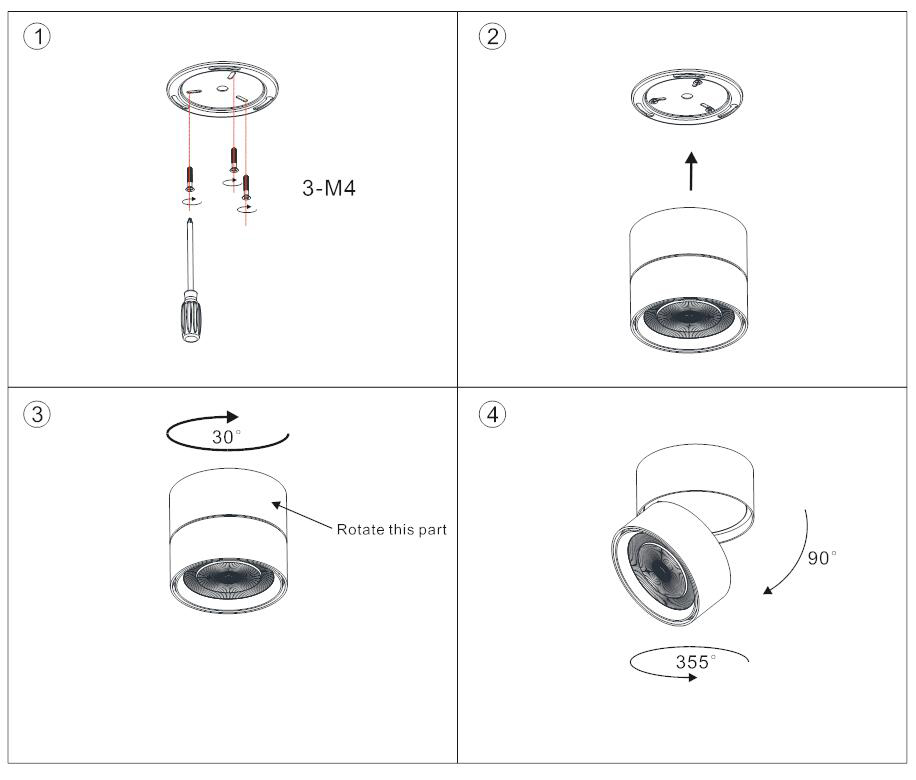

Installation
instruction
