GL02-28W

This family is featured with interchangeable light engine system. 2 light engines of different size can be changed in between more than 20 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The IMS family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere - LED Modules and Light Engines.

Product
information

Name Parameters
Light source: COB
Input Voltage: AC220~240V  50/60Hz
Current: (Adjustable) 700mA 700mA 700mA
  1x28W 2x28w 3x28w
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate:
Dimmability: Dimmable Optional

Packaging
information

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
1x28W 80 15° 3064 lm 3000K   IMS-GL0211-28W-830-S-15
3254lm 4000K   IMS-GL0211-28W-840-S-15
24° 3013 lm 3000K   IMS-GL0211-28W-830-S-24
3213 lm 4000K   IMS-GL0211-28W-840-S-24
40° 3046 lm 3000K   IMS-GL0211-28W-830-S-40
3193 lm 4000K   IMS-GL0211-28W-840-S-40
>90 15° 2766 lm 3000K   IMS-GL0211-28W-930-S-15
24° 2726 lm 3000K   IMS-GL0211-28W-930-S-24
40° 2763 lm 3000K   IMS-GL0211-28W-930-S-40
2x28W >80 15° 4900 lm 3000K   IMS-GL0221-28W-830-S-15
5205lm 4000K   IMSGL0221-28W-840-S-15
24° 4820 lm 3000K   IMS-GL0221-28W-830-S-24
5140 lm 4000K   IMS-GL0221-28W-840-S-24
40° 4875 lm 3000K   IMS-GL0221-28W-830-S-40
5110lm 4000K   IMS-GL0221-28W-840-S-40
>90 15°  4425 lm 3000K   IMS-GL0221-28W-930-S-15
24° 4360 lm 3000K   IMS-GL0221-28W-930-S-24
40° 4420 lm 3000K   IMS-GL0221-28W-930-S-40

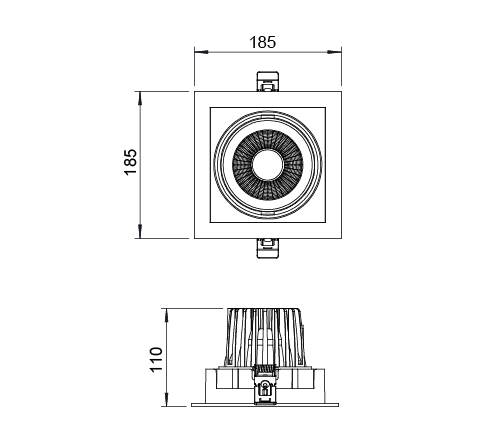

Size
