SD10-L-28W

Product
information

Light source: COB
Input Voltage: AC220~240V  50/60Hz
LED Current: 700mA, 35-37V
Beam Angle: 12°/24°/36°
Life Time: > 50,000h - L80 - B10 (Ta 25°C)
Operating temperature: -20℃~40℃
Certificate: CE/RoHS
Weight: 0.75kg

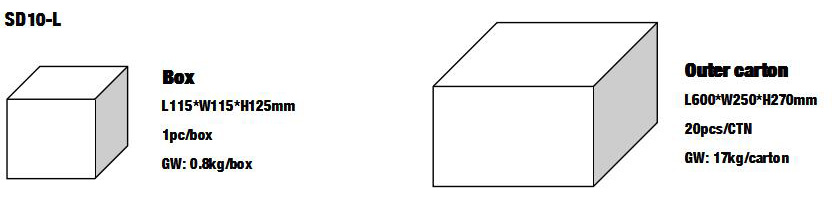

Packaging
information

System
overview

 White  Black
Power CRI Beam Angle Luminous CCT Housing Part Number
28W >80 12° 2825 lm 3000K   SD101-28W-830-W-12-L
  SD101-28W-830-B-12-L
2897 lm 4000K   SD101-28W-840-W-12-L
  SD101-28W-840-B-12-L
24° 2803 lm 3000K   SD101-28W-830-W-24-L
  SD101-28W-830-B-24-L
2871 lm 4000K   SD101-28W-840-W-24-L
  SD101-28W-840-B-24-L
36° 2876 lm 3000K   SD101-28W-830-W-36-L
  SD101-28W-830-B-36-L
2942 lm 4000K   SD101-28W-840-W-36-L
  SD101-28W-840-B-36-L
>90 12° 2165 lm 3000K   SD101-28W-930-W-12-L
  SD101-28W-930-B-12-L
24° 2159 lm 3000K   SD101-28W-930-W-24-L
  SD101-28W-930-B-24-L
36° 2217 lm 3000K   SD101-28W-930-W-36-L
  SD101-28W-930-B-36-L

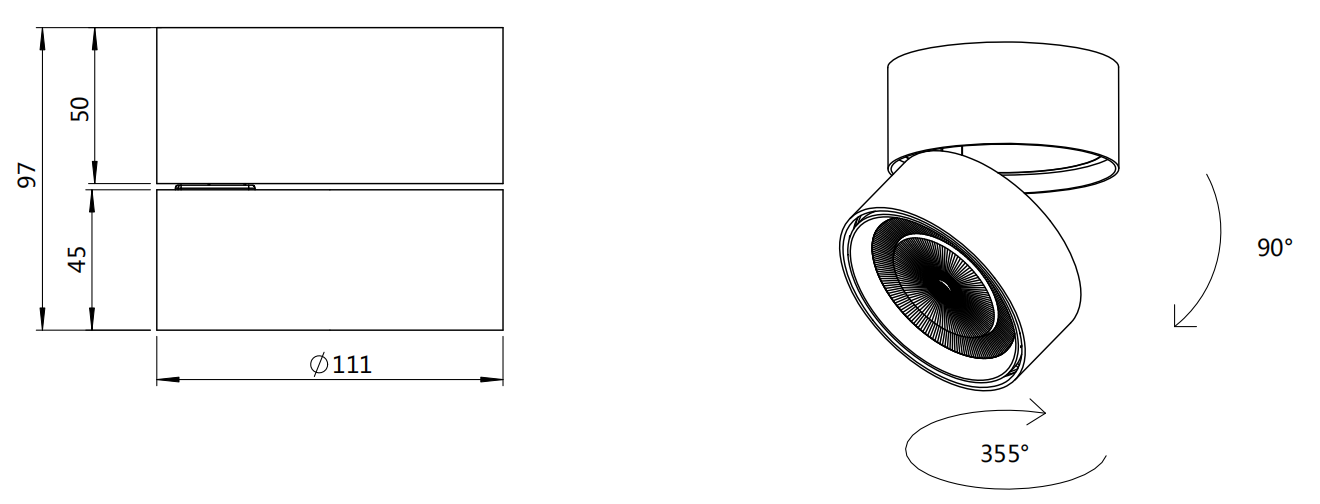

Size

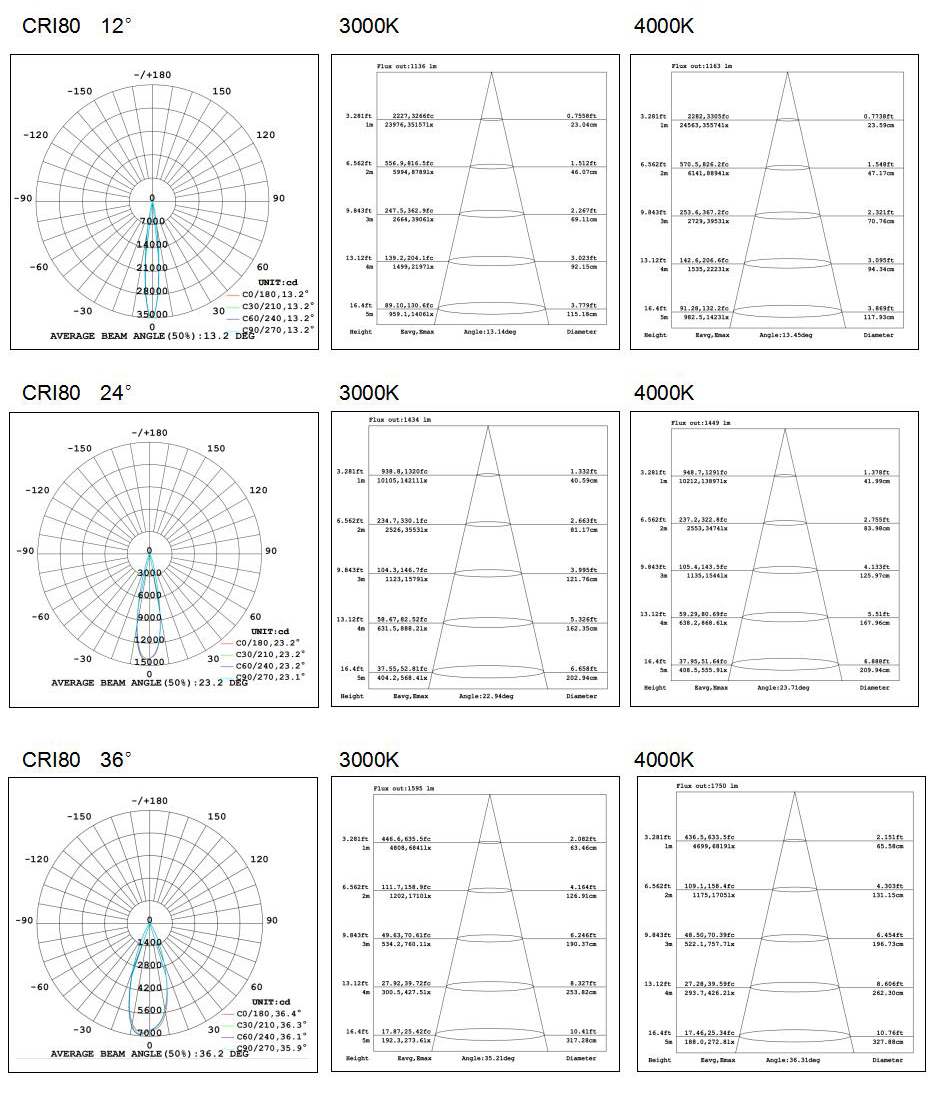

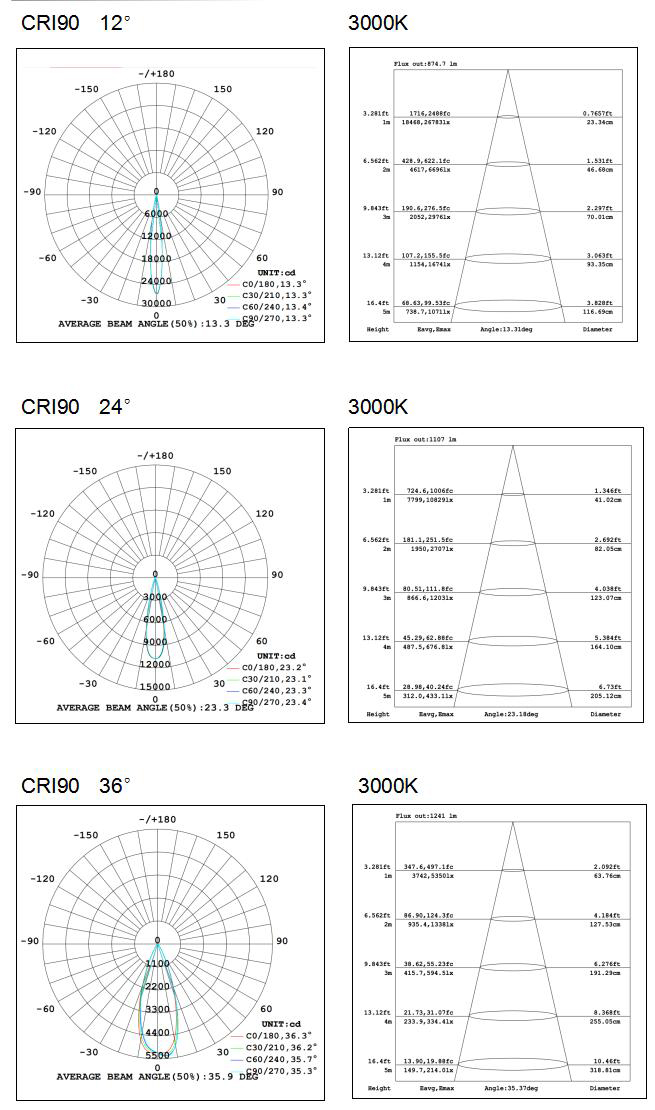

Technical Data
test pattern

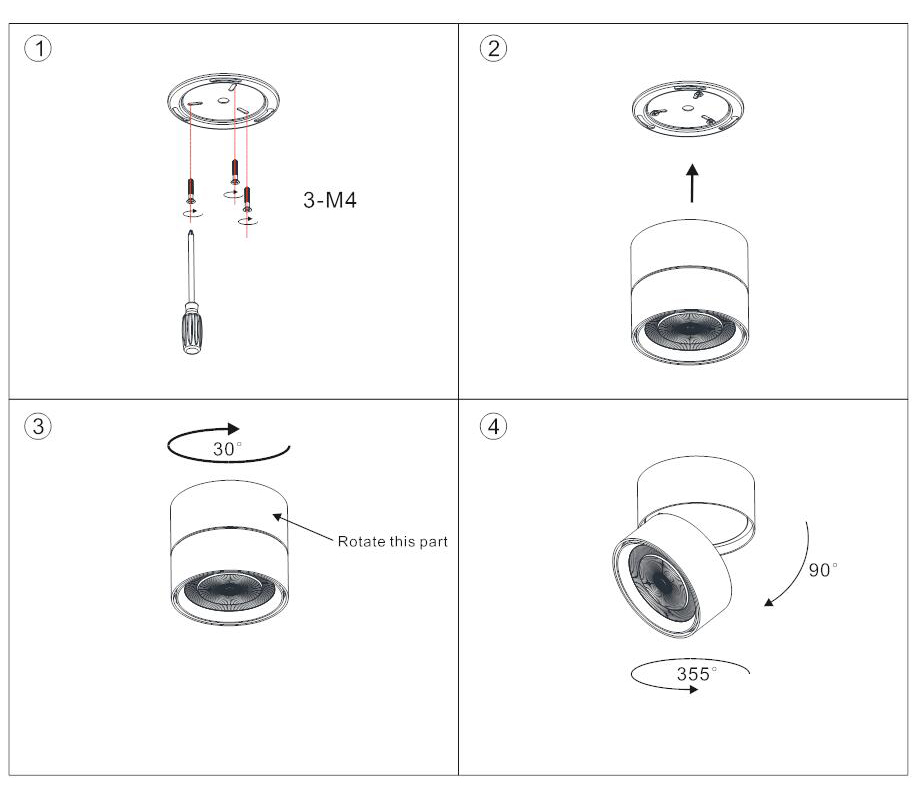

Installation
instruction
