M011-8W

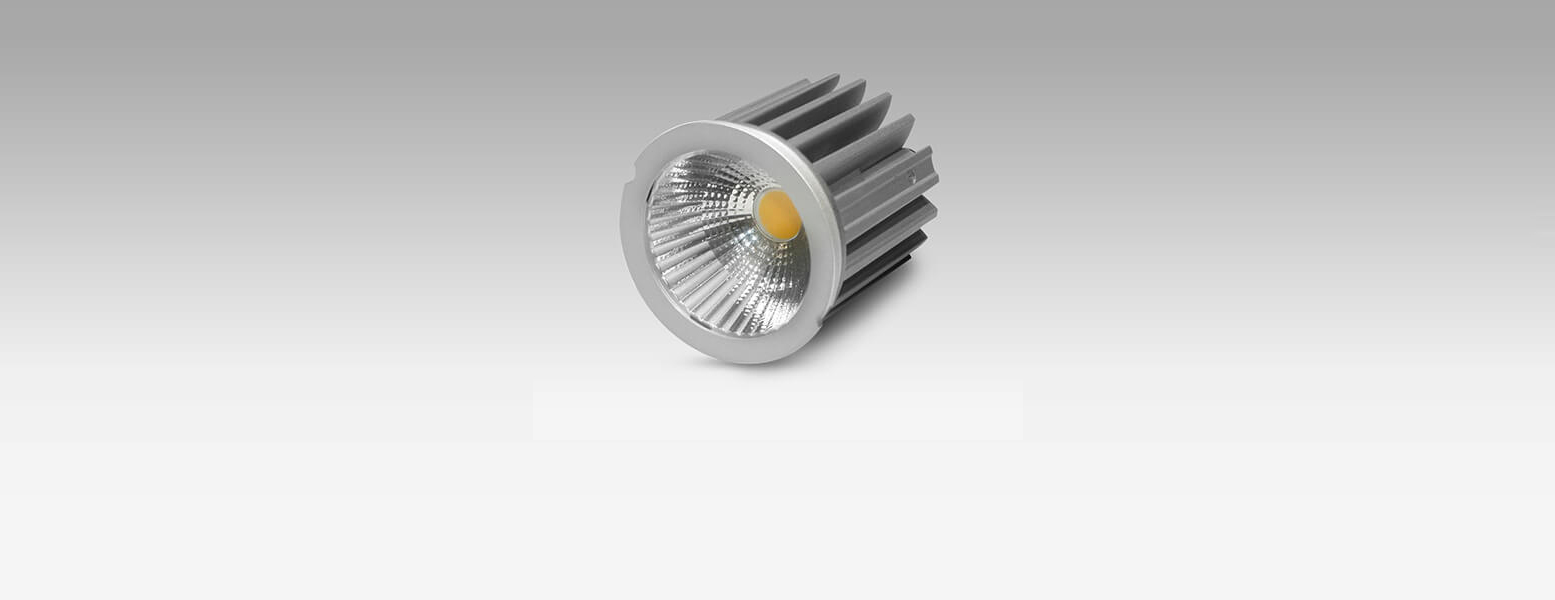

This family is featured with interchangeable light engine system. 3 light engines of different size can be changed in between more than 7 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The Halolite family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 350mA(17.8V) |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: |
0.087KG (M011) / 0.14KG (M0112) 0.18KG (M0113) / 0.18KG (M0114) 0.18KG (M0115) / 0.21KG (M0116) |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 8W | >80 | 16° | 510 lm | 2700K | M011*-8W-827-S-16 | |
| 610 lm | 3000K | M011*-8W-830-S-16 | ||||
| 670 lm | 4000K | M011*-8W-840-S-16 | ||||
| 28° | 490 lm | 2700K | M011*-8W-827-S-28 | |||
| 600 lm | 3000K | M011*-8W-830-S-28 | ||||
| 660 lm | 4000K | M011*-8W-840-S-28 | ||||
| 40° | 500 lm | 2700K | M011*-8W-827-S-40 | |||
| 610 lm | 3000K | M011*-8W-830-S-40 | ||||
| 670 lm | 4000K | M011*-8W-840-S-40 | ||||
| 60° | 500 lm | 2700K | M011*-8W-827-S-60 | |||
| 600 lm | 3000K | M011*-8W-830-S-60 | ||||
| 650 lm | 4000K | M011*-8W-840-S-60 | ||||
| >90 | 16° | 490 lm | 2700K | M011*-8W-927-S-16 | ||
| 610 lm | 3000K | M011*-8W-930-S-16 | ||||
| 28° | 460 lm | 2700K | M011*-8W-927-S-28 | |||
| 600 lm | 3000K | M011*-8W-930-S-28 | ||||
| 40° | 480 lm | 2700K | M011*-8W-927-S-40 | |||
| 610 lm | 3000K | M011*-8W-930-S-40 | ||||
| 60° | 460 lm | 2700K | M011*-8W-927-S-60 | |||
| 600 lm | 3000K | M011*-8W-930-S-60 |
Downloads

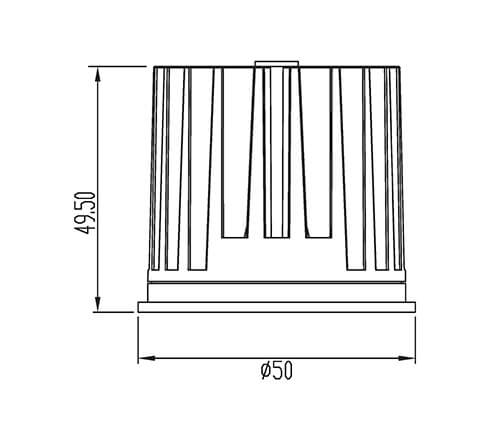

Size
Need more informations? Contact us
