M031-11W
This family is featured with interchangeable light engine system. 3 light engines of different size can be changed in between more than 7 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The Halolite family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 250mA |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: |
0.19KG (M031) / 0.24KG (M0312) 0.28KG (M0313) / 0.29KG (M0314) 0.29KG (M0315) / 0.31KG (M0316) |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 11W | 82 | 16° | 1150 lm | 3000K | M031*-11W-830-S-16 | |
| 1170 lm | 4000K | M031*-11W-840-S-16 | ||||
| 28° | 1120 lm | 3000K | M031*-11W-830-S-28 | |||
| 1150 lm | 4000K | M031*-11W-840-S-28 | ||||
| 40° | 1070 lm | 3000K | M031*-11W-830-S-40 | |||
| 1170 lm | 4000K | M031*-11W-840-S-40 | ||||
| 60° | 1150 lm | 3000K | M031*-11W-830-S-60 | |||
| 1150 lm | 4000K | M031*-11W-840-S-60 | ||||
| >90 | 16° | 950 lm | 3000K | M031*-11W-930-S-16 | ||
| 1060 lm | 4000K | M031*-11W-940-S-16 | ||||
| 28° | 930 lm | 3000K | M031*-11W-930-S-28 | |||
| 1040 lm | 4000K | M031*-11W-940-S-28 | ||||
| 40° | 940 lm | 3000K | M031*-11W-930-S-40 | |||
| 1060 lm | 4000K | M031*-11W-940-S-40 | ||||
| 60° | 930 lm | 3000K | M031*-11W-930-S-60 | |||
| 870 lm | 4000K | M031*-11W-940-S-60 |
Downloads

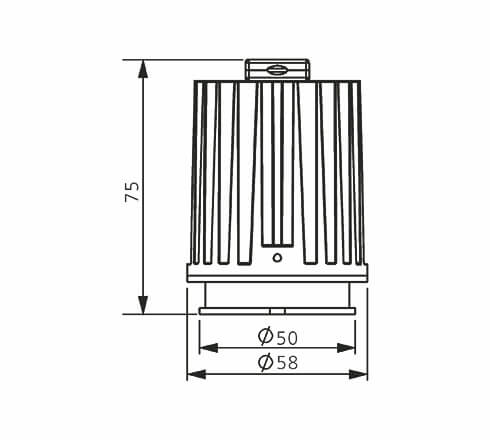

Size
