M042-20W
Modular Systems
Products

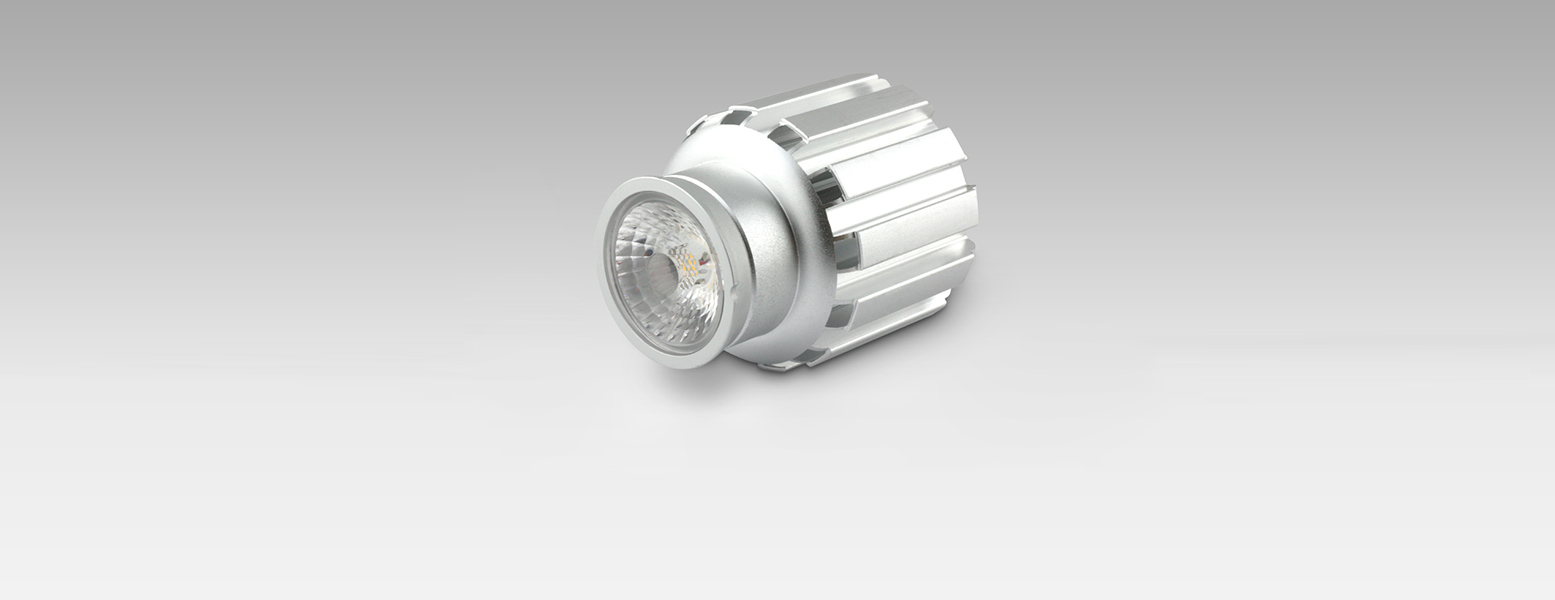

M042-15W
This family is featured with interchangeable light engine system. 3 light engines of different size can be changed in between more than 7 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The Halolite family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 350mA |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: | 0.3KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 15W | >80 | 15° | 1625 lm | 3000K | M042*-15W-830-S-15 | |
| 1675 lm | 4000K | M042*-15W-840-S-15 | ||||
| 24° | 1595 lm | 3000K | M042*-15W-830-S-24 | |||
| 1640 lm | 4000K | M042*-15W-840-S-24 | ||||
| 38° | 1605 lm | 3000K | M042*-15W-830-S-38 | |||
| 1650 lm | 4000K | M042*-15W-840-S-38 | ||||
| 60° | 1610 lm | 3000K | M042*-15W-830-S-60 | |||
| 1665 lm | 4000K | M042*-15W-840-S-60 | ||||
| >90 | 15° | 1340 lm | 3000K | M042*-15W-930-S-15 | ||
| 1430 lm | 4000K | M042*-15W-940-S-15 | ||||
| 24° | 1320 lm | 3000K | M042*-15W-930-S-24 | |||
| 1435 lm | 4000K | M042*-15W-940-S-24 | ||||
| 38° | 1330lm | 3000K | M042*-15W-930-S-38 | |||
| 1440 lm | 4000K | M042*-15W-940-S-38 | ||||
| 60° | 1340 lm | 3000K | M042*-15W-930-S-60 | |||
| 1460 lm | 4000K | M042*-15W-940-S-60 |
Downloads

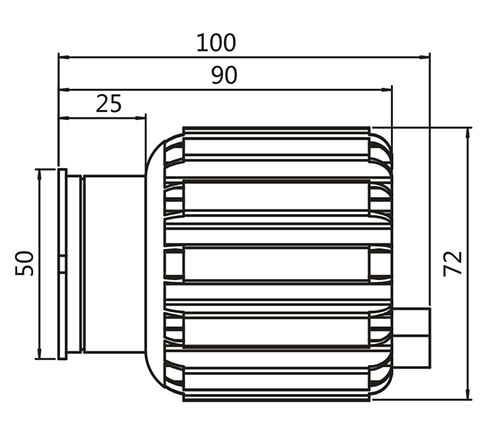

Size
Need more informations? Contact us
