M042-20W
Modular Systems
Products

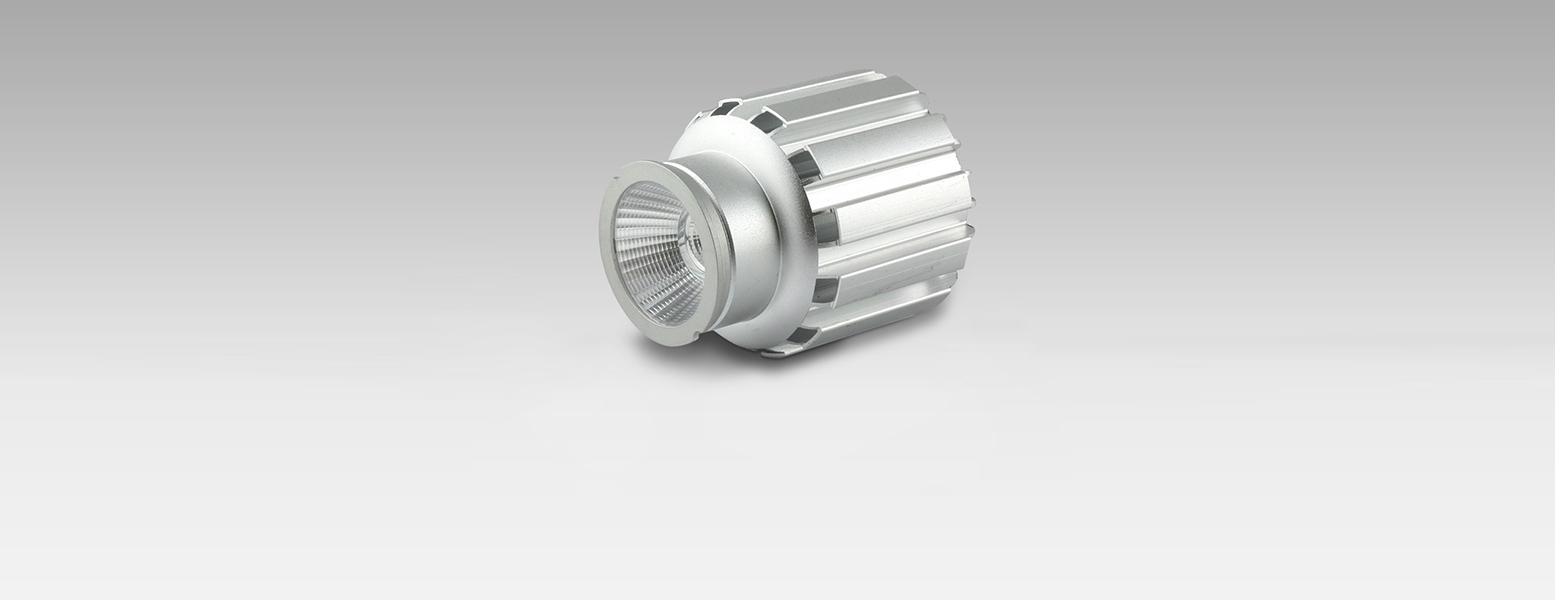

M041-20W
This family is featured with interchangeable light engine system. 3 light engines of different size can be changed in between more than 7 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The Halolite family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 500mA |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: | 0.3KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 20W | >80 | 16° | 2170 lm | 3000K | M041*-20W-830-S-16 | |
| 2150 lm | 4000K | M041*-20W-840-S-16 | ||||
| 28° | 2110 lm | 3000K | M041*-20W-830-S-28 | |||
| 2110 lm | 4000K | M041*-20W-840-S-28 | ||||
| 40° | 2140 lm | 3000K | M041*-20W-830-S-40 | |||
| 2140 lm | 4000K | M041*-20W-840-S-40 | ||||
| 60° | 2140 lm | 3000K | M041*-20W-830-S-60 | |||
| 2135 lm | 4000K | M041*-20W-840-S-60 | ||||
| >90 | 16° | 1770 lm | 3000K | M041*-20W-930-S-16 | ||
| 1970 lm | 4000K | M041*-20W-940-S-16 | ||||
| 28° | 1740 lm | 3000K | M041*-20W-930-S-28 | |||
| 1930 lm | 4000K | M041*-20W-940-S-28 | ||||
| 40° | 1750lm | 3000K | M041*-20W-930-S-40 | |||
| 1960 lm | 4000K | M041*-20W-940-S-40 | ||||
| 60° | 1755 lm | 3000K | M041*-20W-930-S-60 | |||
| 1955 lm | 4000K | M041*-20W-940-S-60 |
Downloads

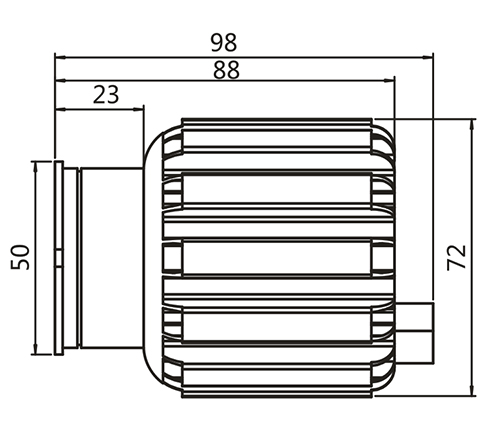

Size
Need more informations? Contact us
