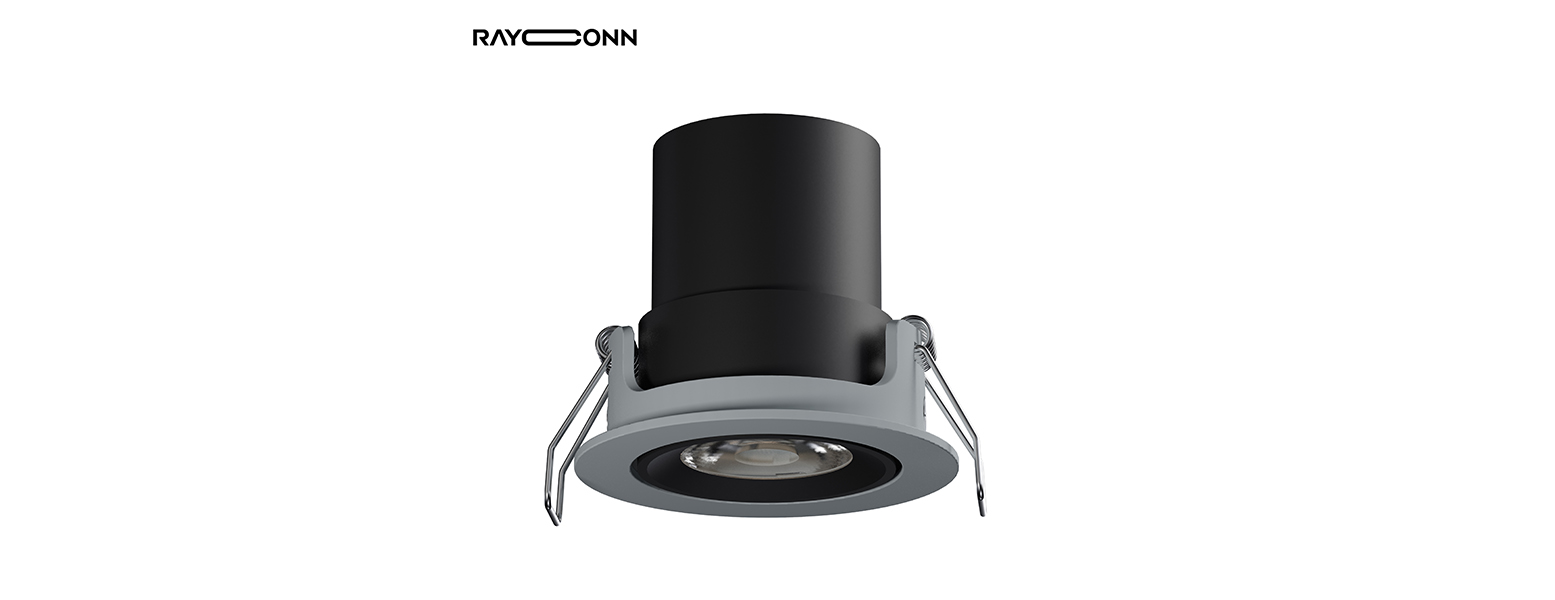

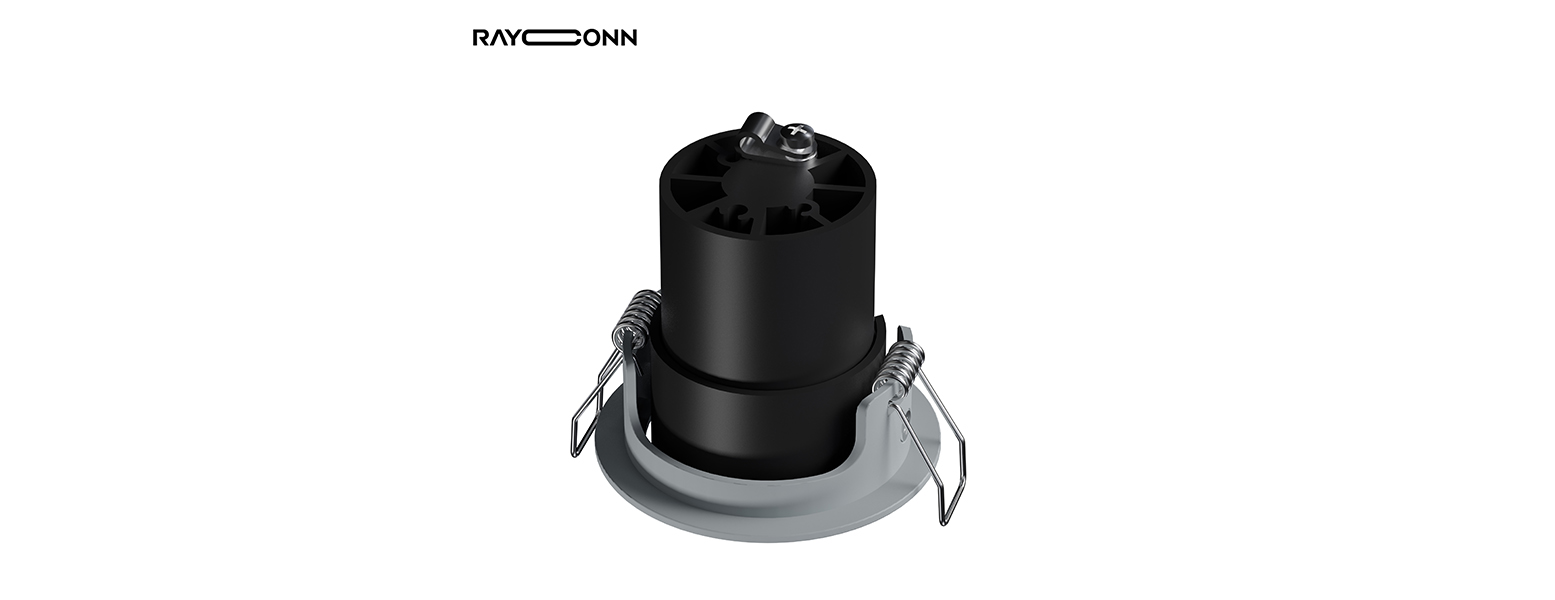

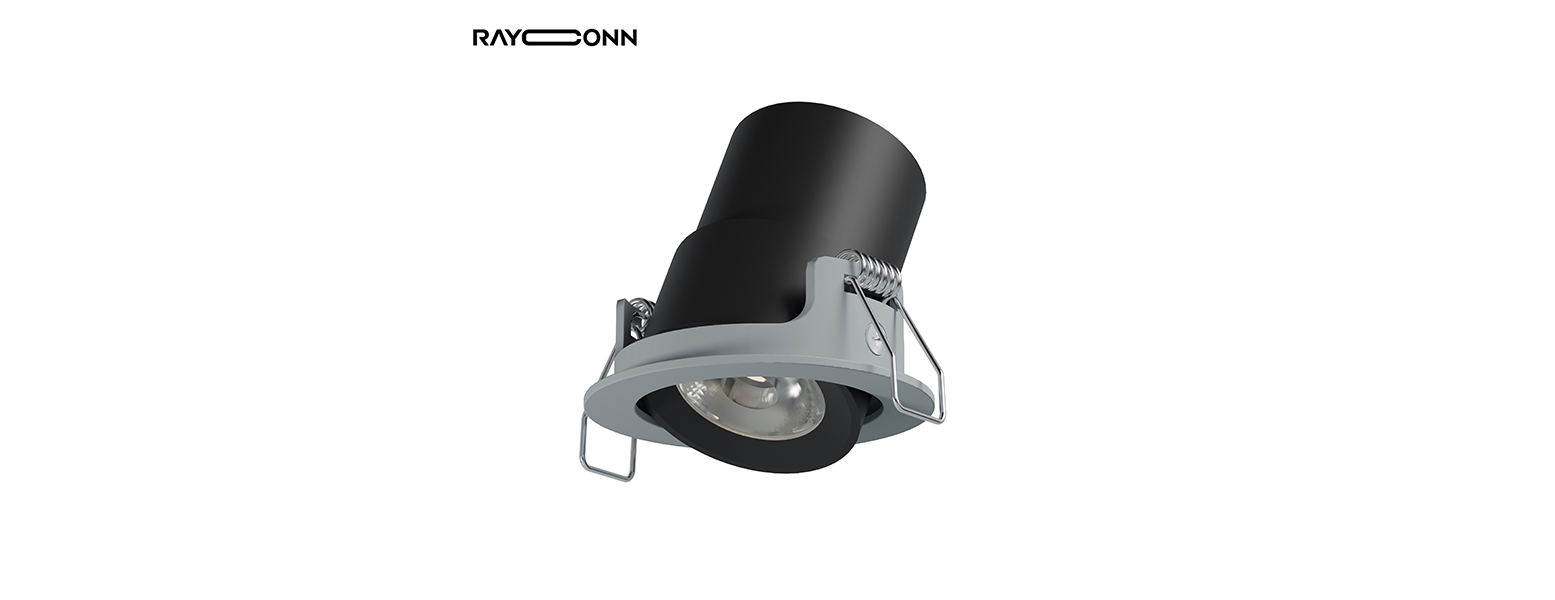

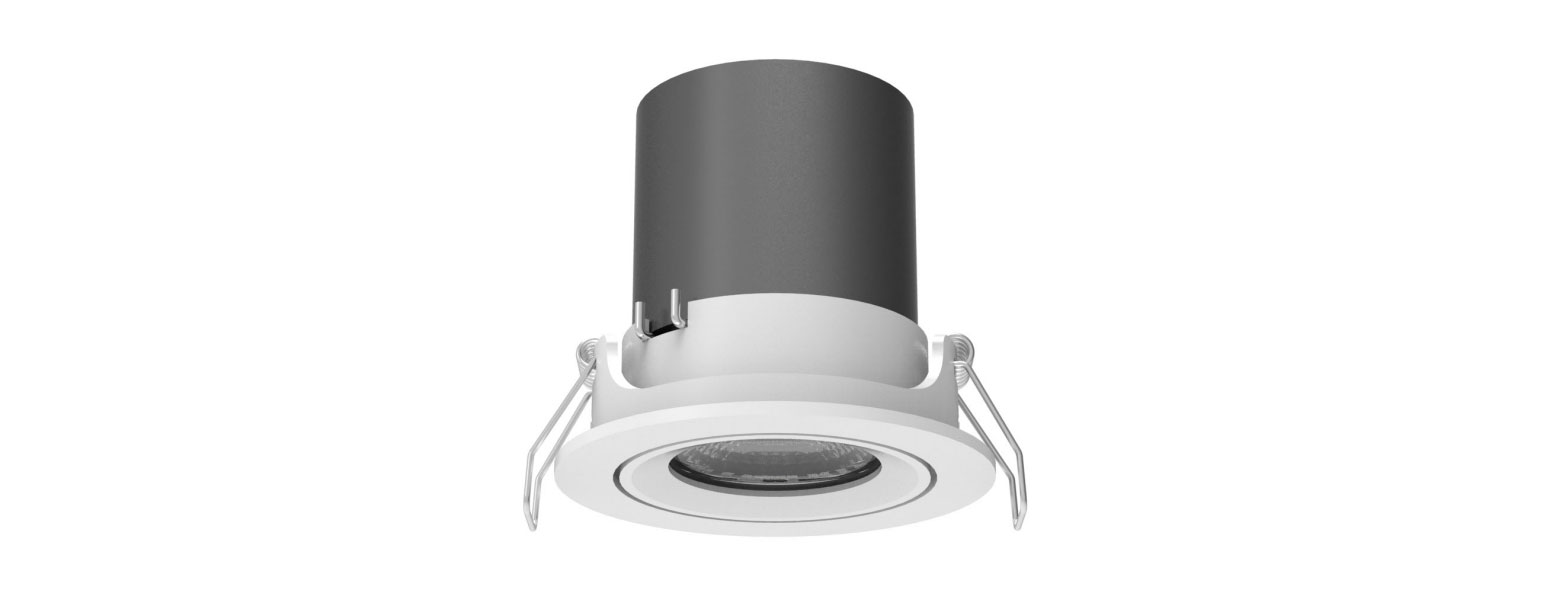

ALR45-08

Product
information

Product number	ALR45 - 08
Input Voltage (v):	220-240V AC
Dimming	On/Off，Triac，1-10V，DALI
Light source	COB LED
luminaire Lifetime	50.000h（L80-B10, Ta25°C）
Rotation Angle (degree)	N/A
Tilting Angle (degree)	30
IP Rating	20
Working Temperature (°C)	-5 ~ +30
Storage Temperature (°C)	-20 ~+50
Material	Aluminium
Fitting Colors	9016 Sandy White / 9017 Sandy Black

Packaging
information

N.W. lamp (Kg)	0.23
G.W. Carton (Kg)	17
Master carton dimensions(mm)	430x430x390
Quantity per carton(PCS)	48

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
15	08W	90	480.5 lm	4000K	ALR45S-NC08G40-S
			453.3 lm	3000K	ALR45S-NC08G30-S
			421.7 lm	2700K	ALR45S-NC08G27-S
20	08W	90	488.9 lm	4000K	ALR45S-NC08G40-M
			461.3 lm	3000K	ALR45S-NC08G30-M
			429.0 lm	2700K	ALR45S-NC08G27-M
27	08W	90	485.6 lm	4000K	ALR45S-NC08G40-F
			458.1 lm	3000K	ALR45S-NC08G30-F
			426.0 lm	2700K	ALR45S-NC08G27-F
55	08W	90	414.7 lm	4000K	ALR45S-NC08G40-WF
			391.2 lm	3000K	ALR45S-NC08G30-WF
			363.8 lm	2700K	ALR45S-NC08G27-WF

Downloads

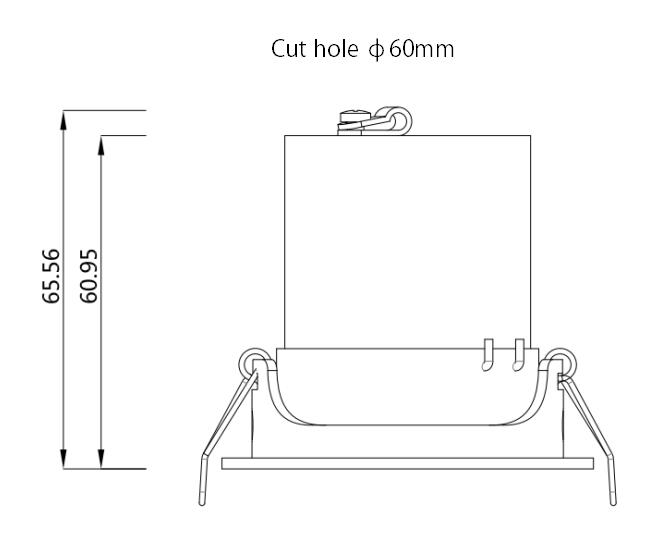

Size

ALR45 - 08
