Products

DP145R-32W

Product
information

Product number：	DP145R - 32W
Track System:	220-240V~
Dimming:	On/Off，TRIAC，1-10V，DALI
Light source:	COB LED
luminaire Lifetime：	50.000h（L80B50, Ta25°C）
IP Rating:	54
Working Temperature (°C)	-5 ~ +30
Material:	Aluminium
Fitting Colors:	Sandy White / Sandy Black

Packaging
information

N.W. lamp (Kg):	1.22
G.W. Carton (Kg):	15.7
Master carton dimensions(mm):	330x405x355
Quantity per carton:	12

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
18	32W	90	2490 lm	4000K	DP145R-32G40-S01
			2418 lm	3000K	DP145R-32G30-S01
			2297 lm	2700K	DP145R-32G27-S01
24	32W	90	2853 lm	4000K	DP145R-32G40-M01
			2770 lm	3000K	DP145R-32G30-M01
			2631 lm	2700K	DP145R-32G27-M01
38	32W	90	2748 lm	4000K	DP145R-32G40-F01
			2668 lm	3000K	DP145R-32G30-F01
			2534 lm	2700K	DP145R-32G27-F01
56	32W	90	2969 lm	4000K	DP145R-32G40-WF01
			2883 lm	3000K	DP145R-32G30-WF01
			2738 lm	2700K	DP145R-32G27-WF01

Downloads

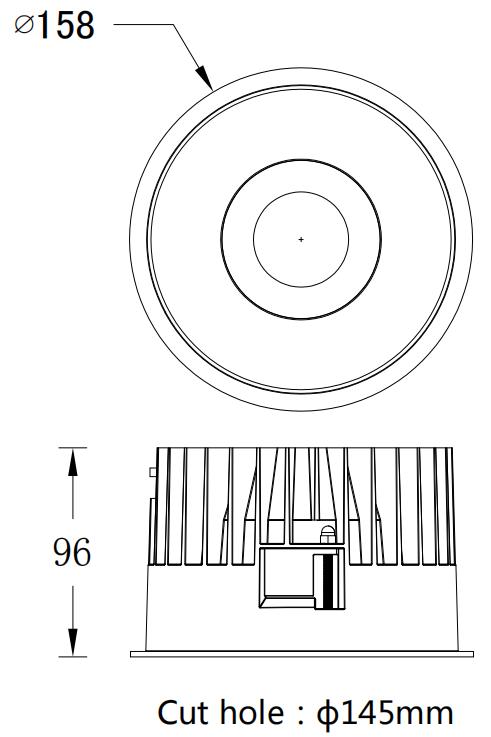

Size

DP145R - 32W

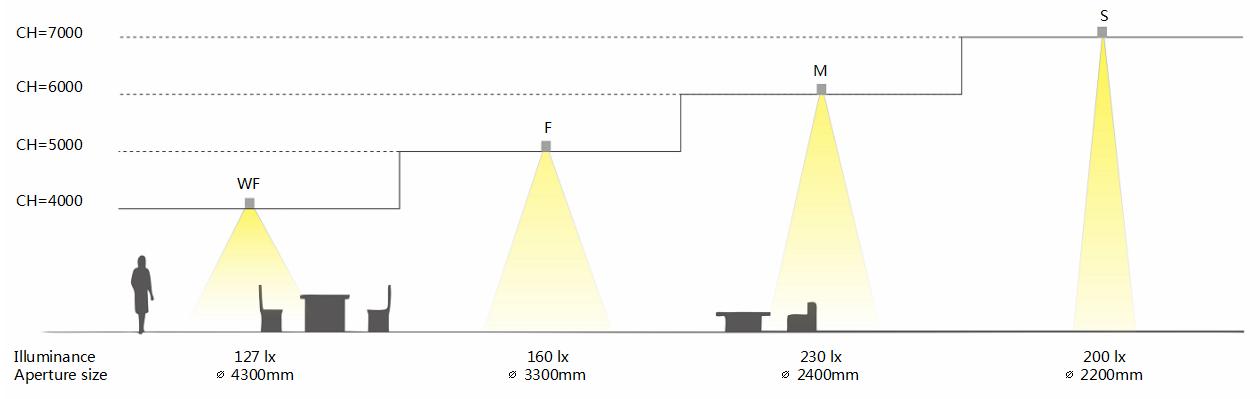

Illuminance Max

DP145R - 32W
