ALRT85-34

Product
information

Product number	ALRT85 - 34
Input Voltage (v):	220-240V AC
Dimming	On/Off，Triac，1-10V，DALI
Light source	COB LED
luminaire Lifetime	50.000h（L80-B10, Ta25°C）
Rotation Angle (degree)	350
Tilting Angle (degree)	90
IP Rating	20
Working Temperature (°C)	-5 ~ +30
Storage Temperature (°C)	-20 ~+50
Material	Aluminium
Fitting Colors	9016 Sandy White / 9017 Sandy Black

Packaging
information

N.W. lamp (Kg)	0.96
G.W. Carton (Kg)	12
Master carton dimensions(mm)	720x295x220
Quantity per carton(PCS)	10

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
21	34W	90	3060.1 lm	4000K	ALRT85S-NC34G40-S
			2886.9 lm	3000K	ALRT85S-NC34G30-S
			2684.8 lm	2700K	ALRT85S-NC34G27-S
25	34W	90	2987.5 lm	4000K	ALRT85S-NC34G40-M
			2818.4 lm	3000K	ALRT85S-NC34G30-M
			2621.1 lm	2700K	ALRT85S-NC34G27-M
35	34W	90	2925.8 lm	4000K	ALRT85S-NC34G40-F
			2760.2 lm	3000K	ALRT85S-NC34G30-F
			2566.9 lm	2700K	ALRT85S-NC34G27-F
45	34W	90	2945.6 lm	4000K	ALRT85S-NC34G40-WF
			2778.9 lm	3000K	ALRT85S-NC34G30-WF
			2584.4 lm	2700K	ALRT85S-NC34G27-WF

Downloads

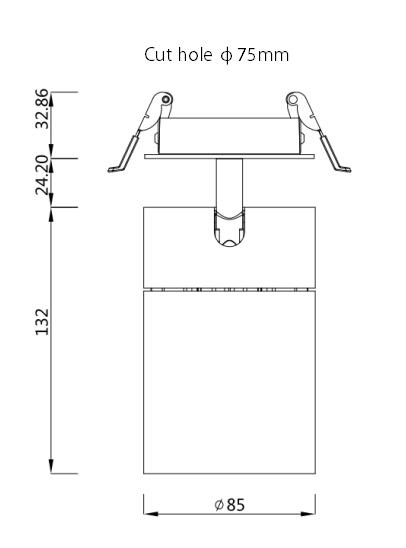

Size

ALRT85 - 34
