ALRT35-06

Product
information

Product number	ALRT35 - 06
Input Voltage (v):	220-240V AC
Dimming	On/Off，Triac，1-10V，DALI
Light source	COB LED
luminaire Lifetime	50.000h（L80-B10, Ta25°C）
Rotation Angle (degree)	350
Tilting Angle (degree)	90
IP Rating	20
Working Temperature (°C)	-5 ~ +30
Storage Temperature (°C)	-20 ~+50
Material	Aluminium
Fitting Colors	9016 Sandy White / 9017 Sandy Black

Packaging
information

N.W. lamp (Kg)	0.22
G.W. Carton (Kg)	16
Master carton dimensions(mm)	430x430x390
Quantity per carton(PCS)	48

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
17	06W	90	556.7 lm	4000K	ALRT35S-NC06G40-S
			525.2 lm	3000K	ALRT35S-NC06G30-S
			488.4 lm	2700K	ALRT35S-NC06G27-S
24	06W	90	553.6 lm	4000K	ALRT35S-NC06G40-M
			522.3 lm	3000K	ALRT35S-NC06G30-M
			485.7 lm	2700K	ALRT35S-NC06G27-M
34	06W	90	463.6 lm	4000K	ALRT35S-NC06G30-F
			555.2 lm	3000K	ALRT35S-NC06G27-F
			487.1 lm	2700K	ALRT35S-NC06G30-F

Downloads

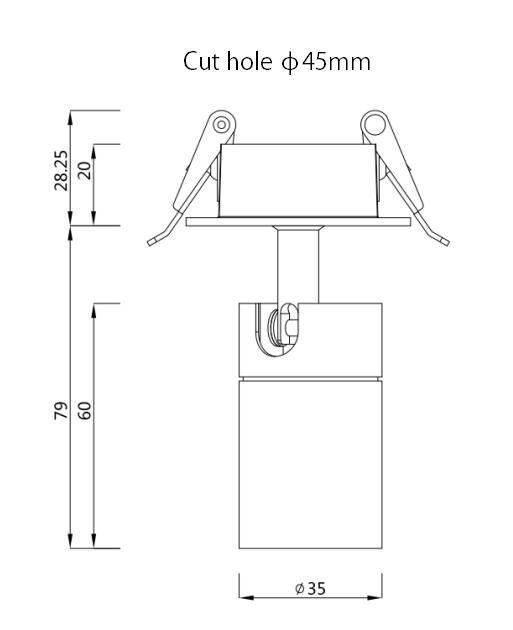

Size

ALRT35 - 06
